RMK-985 | Maeda CC985

Bild 0 einer Mietmaschine vom Typ RMK-985 | Maeda CC985Bild 1 einer Mietmaschine vom Typ RMK-985 | Maeda CC985Bild 2 einer Mietmaschine vom Typ RMK-985 | Maeda CC985Bild 3 einer Mietmaschine vom Typ RMK-985 | Maeda CC985
Vorschaubild 0 einer Mietmaschine vom Typ RMK-985 | Maeda CC985Vorschaubild 1 einer Mietmaschine vom Typ RMK-985 | Maeda CC985Vorschaubild 2 einer Mietmaschine vom Typ RMK-985 | Maeda CC985Vorschaubild 3 einer Mietmaschine vom Typ RMK-985 | Maeda CC985

Technical data

Below you will find all product details.

Lifting height
16,35 m
Lifting capacity
4.900 kg
Lateral reach
14,67 m
Dimensions
2,73 m x 2,32 m x 5,19 m
Weight
9.510 kg
Make
Maeda
Model
CC985
Article designation
RMK-985

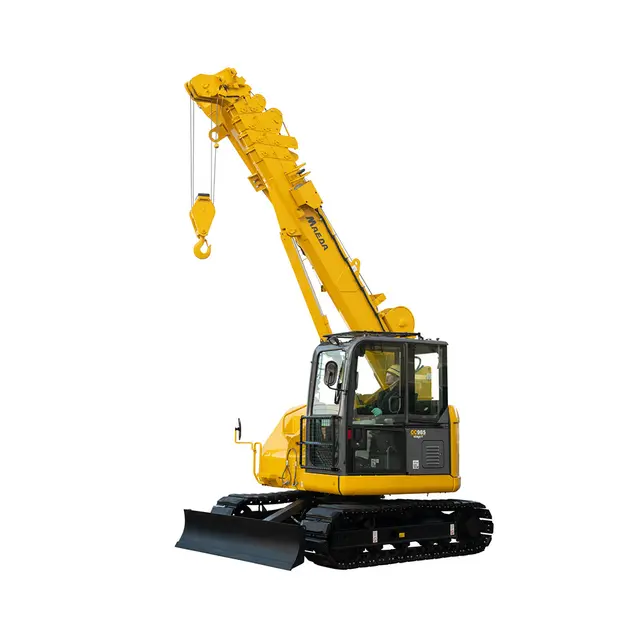

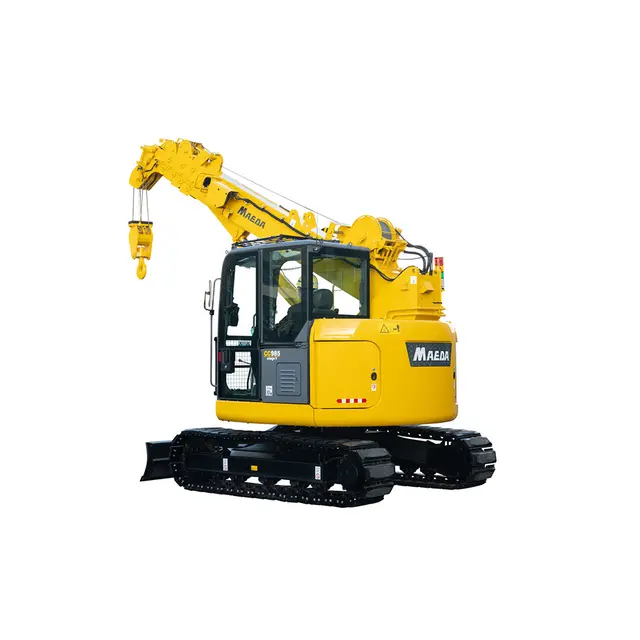

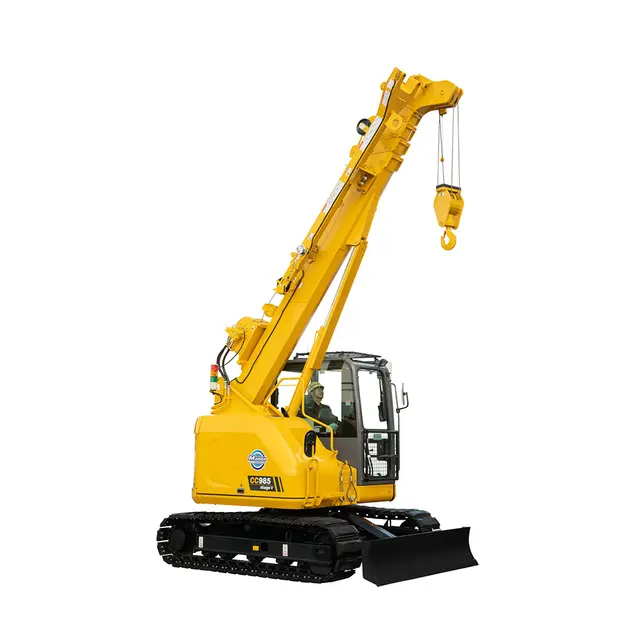

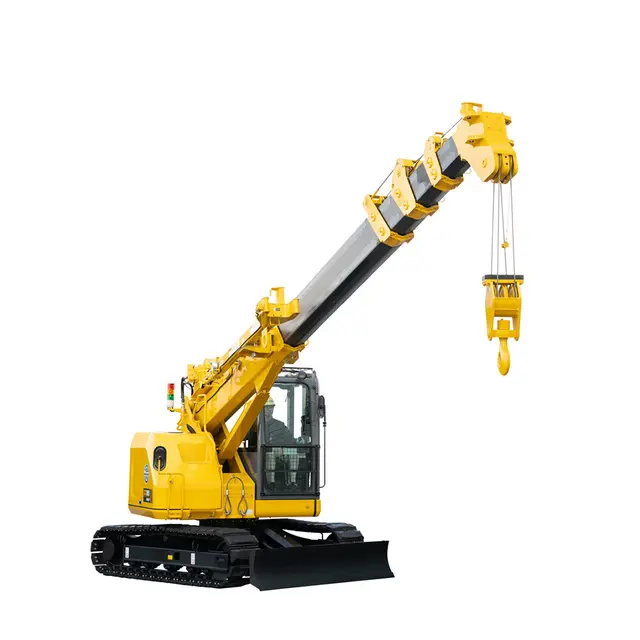

Maeda CC985 Hire – Telescopic Crawler Mini Crane with 4.9 t Capacity and Pick and Carry

The Maeda CC985 is a powerful telescopic crawler crane in a compact format: 4,900 kg capacity at 2.1 m radius, 2,000 kg freely travelable – and all completely without outriggers. Luibl Rental hands over the machine serviced and inspected and delivers it directly to the construction site.

Technical Data

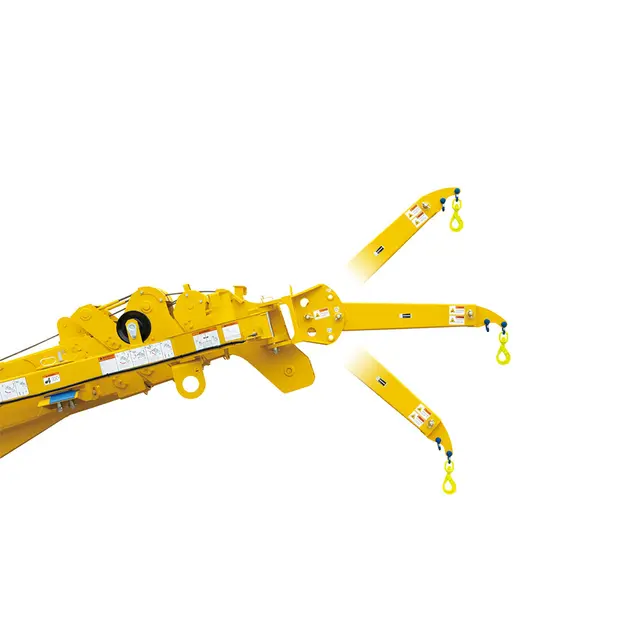

The CC985 is based on a fully automatic, pentagonal telescopic boom and reaches a maximum hook height of 16.35 m. With the optional two-section fly jib, i.e. the folding crane tip, the hook height increases to 20.2 m. The machine is powered by a Yanmar 4TNV86CT diesel engine delivering 34.3 kW at 2,300 rpm.

Key data at a glance:

  • Maximum capacity: 4,900 kg at 2.1 m radius
  • Pick & carry: 2,000 kg, travel with load on the hook
  • Max. hook height: 16.35 m, 20.2 m with fly jib
  • Maximum radius: 14.67 m at 200 kg
  • Travel speed: 0–2.4 km/h in working mode, up to 4.0 km/h in transport mode
  • Tail swing radius: 1,410 mm
  • Operating weight: approx. 9,510 kg
  • Engine: Yanmar 4TNV86CT
  • Optional searcher hook: 1,500 kg capacity, two-section fly jib required
  • Dozer blade: standard, hydraulic

The low ground pressure of the rubber tracks protects pressure-sensitive surfaces – relevant for work in underground car parks, on paved areas or in halls with industrial floor coatings.

Pick & Carry in the 5-Tonne Class – What It Means

Cranes in this capacity class normally require extended outriggers before they can pick up a load. The CC985 does not. The crawler undercarriage takes over stabilisation completely – the machine can continue travelling directly with 2,000 kg on the hook.

This is not a comfort feature but a tangible economic advantage: no outrigger footprints to plan, no repositioning between picks, no production stop in adjacent areas. Especially in industrial halls, multi-storey car parks or on urban construction sites with a limited working radius, this difference becomes noticeable in the project duration.

The two-stage hydrostatic travel drive with pilot-operated hydraulics gives the operator sensitive control – even with a load on the hook.

Applications

The CC985 is not an all-purpose crane. It solves specific problems where lack of space and lifting capacity are decisive at the same time:

  • Industrial assembly and maintenance: machine replacement in existing production halls under active lines, equipment replacement with limited ceiling height, searcher hook for work beneath obstacles

  • Specialist civil engineering and foundation work: setting precast elements and steel beams on confined sites without space for outriggers
  • Steel construction and facade work: transport and precise positioning of heavy steel or glass elements on upper floors
  • Infrastructure and tunnel construction: lifting work in areas with entry height restrictions
  • Demolition and deconstruction: selective deconstruction in existing buildings where neighbouring areas must remain in use

Safety Equipment

The CC985 comes as standard with a programmable load moment limiter. The system continuously monitors boom position, working angle, radius and load weight. It intervenes automatically before critical limits are exceeded.

Standard equipment includes:

  • 7-inch colour display in the enclosed, air-conditioned operator's cab
  • Tilt alarm, acoustic and visual
  • Hydraulic safety valves on all cylinders
  • Over-hoist protection for the winch
  • Data logger for complete documentation of operations
  • Emergency stop switch
  • Hydraulic dozer blade, standard

Every rental machine is handed over serviced and inspected. On request, you will receive an introduction to the machine at handover.

Hire the Maeda CC985 from Luibl Rental

Luibl Rental delivers the CC985 with its own low-loader fleet directly to your construction site. For large projects, we prepare individual long-term quotations, including service intervals on request.

Service hours: Monday to Friday, 08:00–17:00

Check availability now and request a quotation.
