MIK-3053 | Maeda MK3053CB

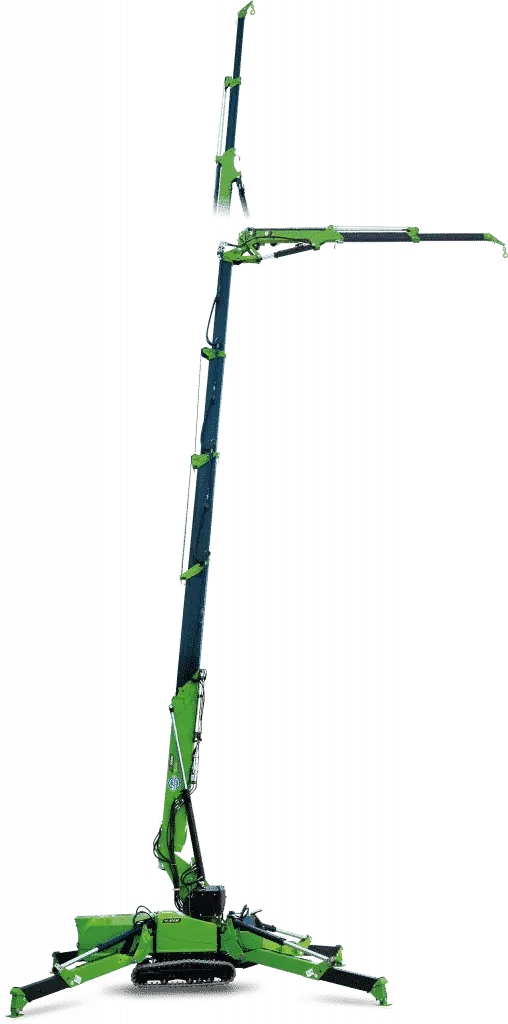

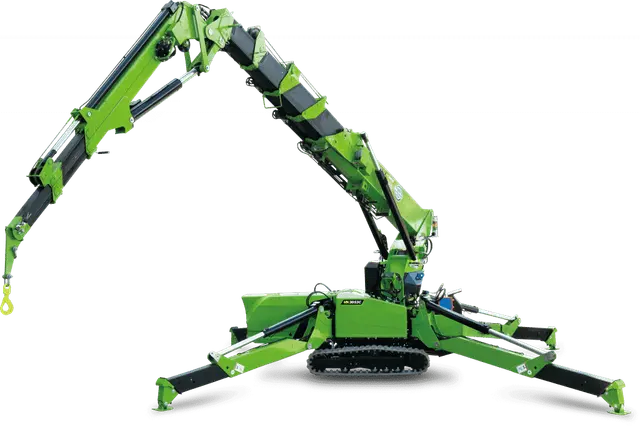

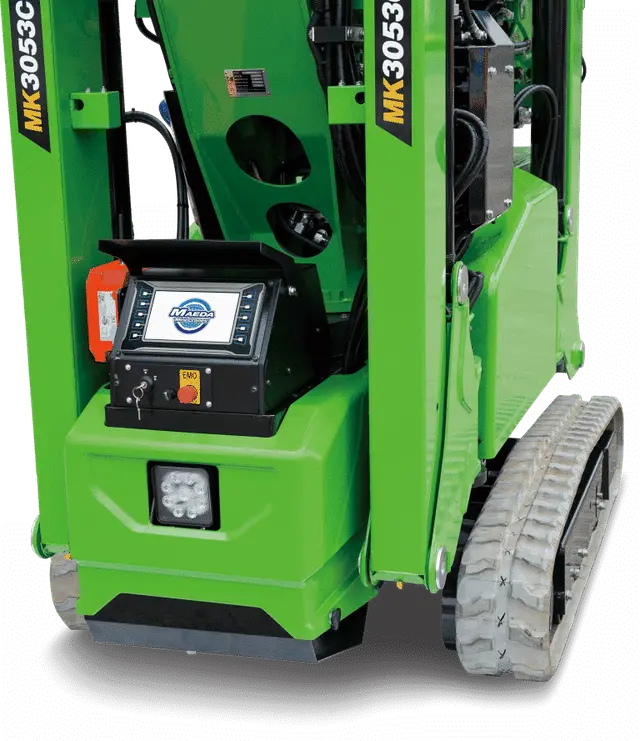

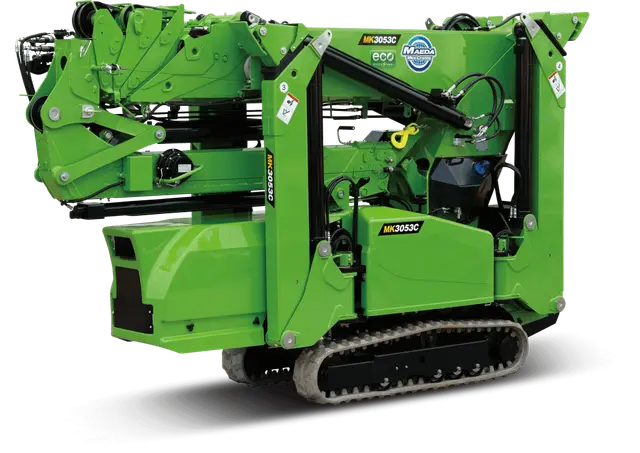

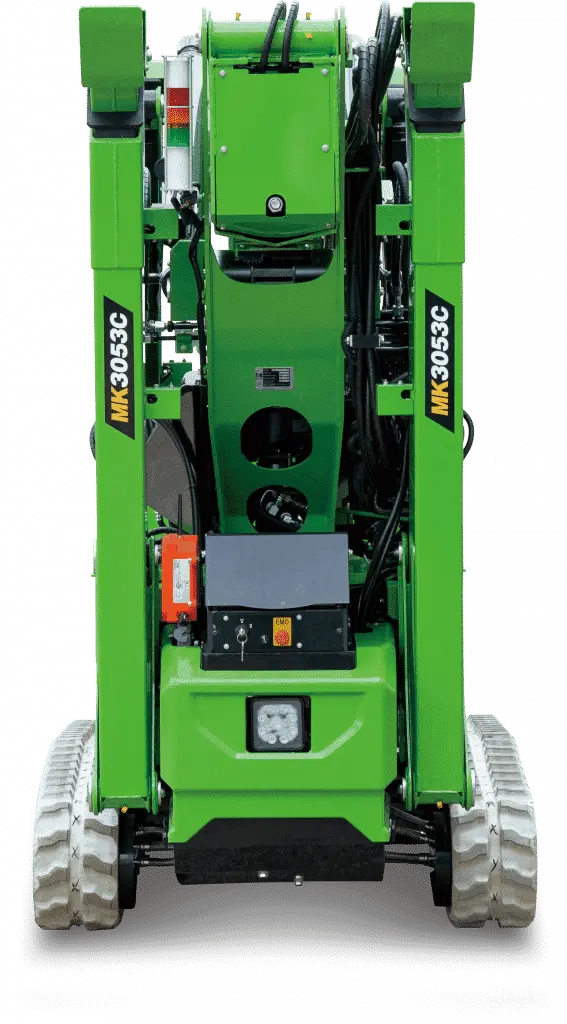

Bild 0 einer Mietmaschine vom Typ MIK-3053 | Maeda MK3053CBBild 1 einer Mietmaschine vom Typ MIK-3053 | Maeda MK3053CBBild 2 einer Mietmaschine vom Typ MIK-3053 | Maeda MK3053CBBild 3 einer Mietmaschine vom Typ MIK-3053 | Maeda MK3053CBBild 4 einer Mietmaschine vom Typ MIK-3053 | Maeda MK3053CB

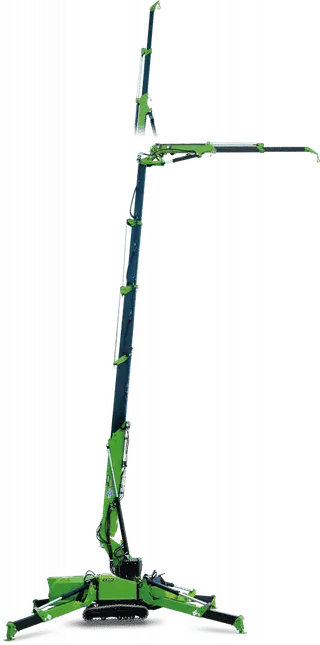

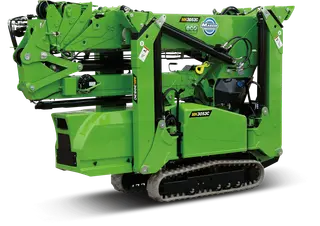

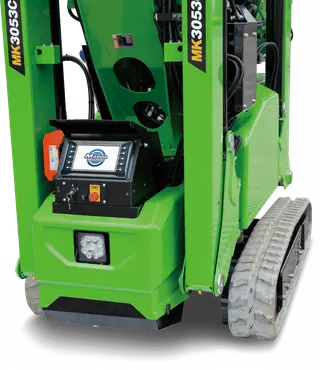

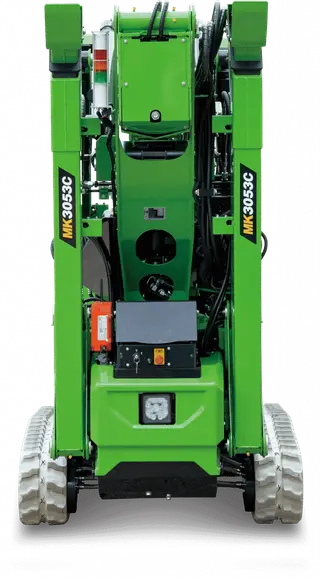

Vorschaubild 0 einer Mietmaschine vom Typ MIK-3053 | Maeda MK3053CBVorschaubild 1 einer Mietmaschine vom Typ MIK-3053 | Maeda MK3053CBVorschaubild 2 einer Mietmaschine vom Typ MIK-3053 | Maeda MK3053CBVorschaubild 3 einer Mietmaschine vom Typ MIK-3053 | Maeda MK3053CBVorschaubild 4 einer Mietmaschine vom Typ MIK-3053 | Maeda MK3053CB

Technical data

Below you will find all product details.

Lifting height
16,95 m
Lifting capacity
2.800 kg
Lateral reach
14,30 m
Dimensions
3,195 m x 0,78 m x 1,945 m
Weight
2.900 kg
Make
Maeda
Model
MK3053CB
Article designation
MIK-3053

MIK-3053 | Maeda MK3053CB – mini crane

The Maeda MK3053CB is a versatile mini crane from Maeda. This fully proportional, radio-controlled mini crane features an automatic pentagonal telescopic boom and a three-section knuckle jib that provides flexibility and precision. With compact dimensions and a lifting capacity of 2,800 kg, it is extremely powerful and versatile. The MK3053CB has a hybrid drive consisting of a diesel engine and an electric motor with a lithium-ion battery. With a maximum working radius of 14.3 m and a lifting height of 16.95 m, it is ideal for tasks at height.

Powerful and versatile: the robust crane for demanding tasks With a maximum lifting capacity of 2,800 kg at a radius of 1.8 metres, our crane is a reliable partner for a wide range of lifting tasks. Its generous working radius of 14.3 metres and maximum lifting height of 16.95 metres make it an extremely flexible tool. The stable outriggers, which extend to dimensions of (L) 4,546 mm x (F) 4,537 mm x (R) 4,351 mm, provide the stability needed for safe work. This crane is also well equipped in terms of mobility. With a travel speed of 0 to 2.4 km/h, it moves efficiently across different terrain. The ground pressure is 83.4 kPa [0.85 kgf/cm²], which ensures an even distribution of weight. Reliable power comes from the KUBOTA Z482-E4B diesel engine. This is complemented by a 4.0 kW electric motor with a voltage of 380V (200-415V). Thanks to the lithium-ion battery, the crane also remains ready for use without interruption. The input voltage is single-phase AC200V / 16A or AC100V / 14A. With dimensions of 3,195 mm x 780 mm x 1,945 mm, this crane fits into a wide variety of working environments. Weighing 2,900 kg, it is robust enough for intensive tasks and yet manageable enough for easy operation. If you are looking for a crane with impressive lifting capacity, long reach and reliable performance, our model is a suitable choice. Rely on proven technology and hire a crane that handles your lifting requirements with ease.

Key technical data

  • Lifting height: 16.95 m
  • Lifting capacity: 2,800 kg
  • Lateral reach: 14.3 m
  • Width: 1.05 m
  • Height: 1.95 m

Use and benefits

The drive concept supports a range of operating conditions.

Check availability now and request a quote.
