MIK-1033 | Maeda MK1033CW1

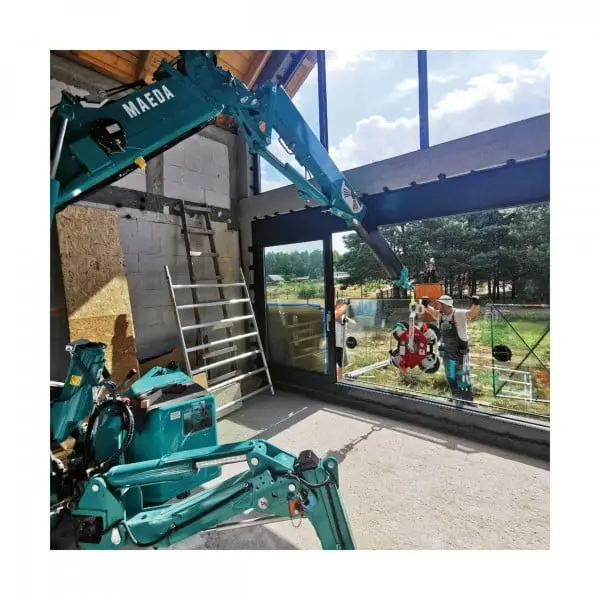

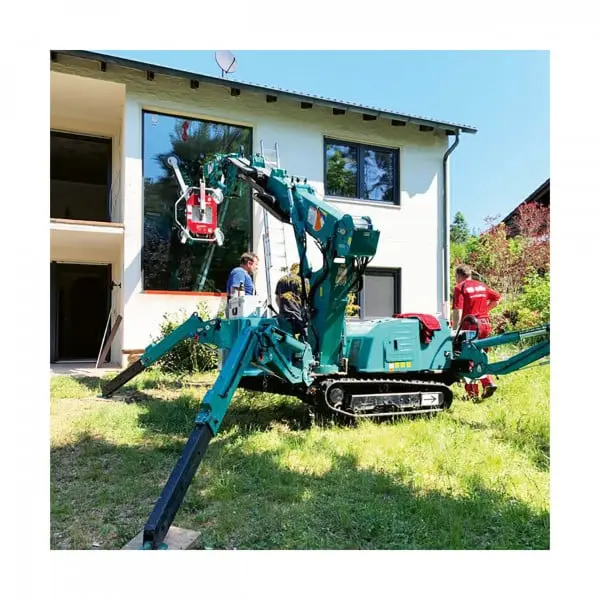

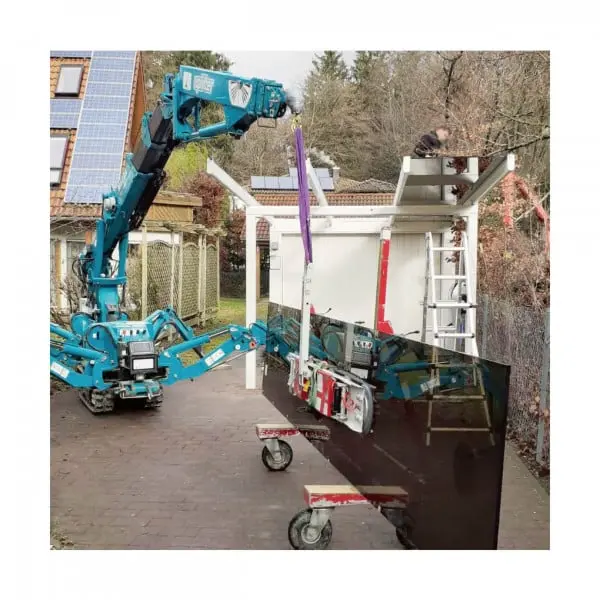

Bild 0 einer Mietmaschine vom Typ MIK-1033 | Maeda MK1033CW1Bild 1 einer Mietmaschine vom Typ MIK-1033 | Maeda MK1033CW1Bild 2 einer Mietmaschine vom Typ MIK-1033 | Maeda MK1033CW1Bild 3 einer Mietmaschine vom Typ MIK-1033 | Maeda MK1033CW1
Vorschaubild 0 einer Mietmaschine vom Typ MIK-1033 | Maeda MK1033CW1Vorschaubild 1 einer Mietmaschine vom Typ MIK-1033 | Maeda MK1033CW1Vorschaubild 2 einer Mietmaschine vom Typ MIK-1033 | Maeda MK1033CW1Vorschaubild 3 einer Mietmaschine vom Typ MIK-1033 | Maeda MK1033CW1

Technical data

Below you will find all product details.

Lifting height
11,30 m
Lifting capacity
995 kg
Lateral reach
10,00 m
Dimensions
2,90 m x 0,75 m x 1,955 m
Weight
2.300 kg
Make
Maeda
Model
MK1033
Article designation
MIK-1033

MIK-1033 | Maeda MK1033CW1 – Mini Crane

The Maeda MK1033CW1 is a mini crane characterized by its flexibility and manoeuvrability. With a fully automatic articulated boom, this crane is extremely versatile and particularly well suited for tasks that require precise movements. The crane offers a maximum load capacity of 995 kg with a lifting height of 11.3 m and a working range of 10 m. Its super-slim body, only 750 mm wide, allows it to be used in confined working environments. It also has a locking system for the outriggers and low ground pressure, which ensures its stability and safety. The Maeda MK1033CW1 is ideal for lifting work in the lower weight range and stands out for its universal applicability. Thanks to its compact size and flexible outrigger design, it can be set up without difficulty, even in confined or uneven environments. Our compact crane is a solution for a wide range of lifting projects. With a load capacity of up to 995 kg, it handles loads of various kinds. The hydraulic articulated boom with telescopic extensions allows flexible use. It reaches a lifting height of up to 11.3 metres and covers a working radius of up to 10 metres. The crane is powered by a combination of a 7.4 kW diesel engine (Yanmar 2TNV70-NMBA) running at 2,500 rpm and an electric motor operating at 380 volts. Intelligent fan cooling of the electric motor helps maintain the optimum operating temperature. With compact dimensions of 3,235 mm x 750 mm x 1,955 mm, the crane can be used flexibly, even in confined spaces. Thanks to a quick coupling, the electric motor can be attached and removed quickly and easily, which improves the efficiency of work processes. If you are looking for a solution that combines power and functionality in one machine, our compact crane is worth considering. It offers reliable lifting technology for various requirements. Contact us for further information.

Key Specifications

  • Lifting height: 11.3 m
  • Load capacity: 995 kg
  • Lateral reach: 10 m
  • Width: 0.75 m
  • Height: 1.96 m

Use and Benefits

The drive concept supports different operating conditions.

Check availability now and request a quote.
