High-lift pallet truck rental – efficient warehouse logistics in the tightest spaces

Narrow aisles, low hall ceilings, emission-sensitive interiors: this is where a high-lift pallet truck is used when a conventional forklift would be too big or too loud. At Luibl you rent electric high-lift pallet trucks with lithium-ion batteries, load capacities from 1,000 to 2,000 kg and lift heights from 3 to over 5 metres. Delivered throughout Slovakia by our own low-loader fleet.

The high-lift pallet truck closes the gap between the simple low-lift pallet truck (horizontal transport only) and the conventional electric forklift. It lifts loads up to mast height – without local emissions, agile and with a much smaller footprint than a ride-on forklift.

The specific benefits for warehousing and logistics:

• Indoor operation without local emissions: the electric drive with LiFePO4 technology works without exhaust fumes – a must in food logistics, pharmaceutical production, retail and enclosed halls without heavy ventilation.

• Agility in narrow aisles: the compact dimensions allow work in racking aisles where a ride-on forklift has no room to manoeuvre. Decisive in high-bay warehouses and dense block stacking.

• Low noise level: the electric drive is quiet. This makes the high-lift pallet truck suitable for retail areas during opening hours, residential areas for night deliveries or hospital logistics.

• No forklift operator licence in the classic sense, but instruction: for pedestrian-operated trucks such as the high-lift pallet truck we recommend documented in-house instruction in line with applicable Slovak safety rules. More on the required operator competence below.

• Prompt availability for peak loads: renting covers seasonal peaks. Christmas trade in retail, stocktaking, production changeovers or short-term logistics projects – the rental fleet delivers at short notice.

Choosing a high-lift pallet truck is usually a decision against the space requirements and emissions of a ride-on forklift – while offering a higher lift than a low-lift pallet truck.

Luibl offers electric high-lift pallet trucks with load capacities from 1,000 kg to 2,000 kg and lift heights from 3 to over 5 metres. The focus is on modern machines with lithium-ion batteries – replacing older lead-acid batteries with their long charging times and cell maintenance.

Standard high-lift pallet trucks for classic pallet handling

For level hall floors and typical pallet logistics (Euro pallets, mesh box pallets) the standard high-lift pallet truck is the first choice. Load capacity 1,000 to 1,600 kg, lift height 3 to 3.5 metres. It is operated via an ergonomically shaped tiller with fingertip controls for lifting, lowering and direction of travel.

Typical applications: interim storage in production, order picking in warehouses, loading and unloading small vans with dropside height.

High-lift pallet trucks with initial lift for ramps and uneven surfaces

On truck ramps, at thresholds of loading doors or on slight unevenness outdoors, a standard high-lift pallet truck is not always enough. Models with initial lift additionally raise the load rollers on the fork carriage before the mast starts. The pallet is lifted off the ground along its full length – the truck overcomes thresholds and ramp edges without the load rollers touching down.

This is the decisive difference from the standard truck: where the working environment is not completely level, initial lift makes the job possible in the first place.

Electric high-lift pallet trucks up to 2 tonnes load capacity

For heavier loads and multi-shift operation Luibl offers electric high-lift pallet trucks with up to 2,000 kg load capacity and lift heights over 5 metres. These trucks work with a triplex mast and full free lift – important in halls with limited ceiling height. The lithium-ion battery allows opportunity charging during breaks; the truck stays ready for shift operation without a battery change.

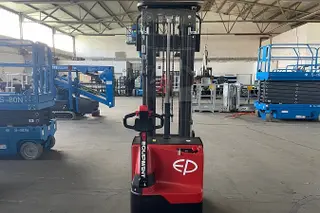

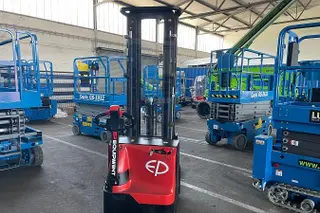

An example model from the rental fleet is the EP ES series – Li-ion based, with integrated charger and designed for continuous use in intralogistics.

Four parameters determine which model suits your application.

Load capacity and load centre: the rated capacity always applies to a defined load centre – usually 500 or 600 mm. With longer or asymmetric loads the residual capacity decreases. The load chart on the truck shows the exact values for every lift height and load centre. Particularly relevant: at maximum lift height the permissible load drops well below the rated value – something the operator must take into account when storing in high racking.

Lift height and mast type: three designs are common on the market. Simplex (single mast) allows lift heights up to approx. 3 m without telescoping. Duplex (two-stage telescopic mast, partly with free lift) reaches 3.5 to 4.5 m. Triplex (three-stage mast with full free lift) lifts over 5 m – with the same retracted height. Free lift is the distance the fork carriage can travel upwards without the mast itself extending – crucial in halls with low doors or ceiling beams.

Retracted height: often forgotten, but it decides whether the truck fits through doors and under ceiling beams. With duplex and triplex masts with free lift, the retracted height stays manageable even at high lift heights. Before renting: measure the door height at the site.

Turning circle and aisle width: high-lift pallet trucks are guided by a pedestrian operator. The turning circle is much smaller than that of a ride-on forklift – allowing working aisles from around 2.2 m wide. For even narrower aisles there are narrow-aisle variants in three-way stacker design, available from Luibl on request.

Battery and charging: lithium-ion batteries are standard at Luibl. Advantages: opportunity charging without capacity loss, no gassing (no separate charging room needed), longer service life than lead-acid. The integrated charger runs on standard 230 V power – no three-phase installation required. A full charge lasts a full shift depending on usage; opportunity charging during breaks significantly extends operating time.

• Retail and DIY stores: shelf filling during opening hours, quiet and without local emissions. High-lift pallet trucks with initial lift overcome door thresholds between warehouse and sales floor.

• Food and beverage logistics: HACCP-compliant hall logistics with all-electric machines. Diesel forklifts not permitted.

• Pharmaceutical and clean room logistics: operation without local emissions and low noise are a must here.

• Production and interim storage: supplying production lines, returning empty pallets, putting away and retrieving in the adjacent racking area.

• Order picking and dispatch: combined with low-lift pallet trucks, the high-lift pallet truck forms the backbone of intralogistics in e-commerce and distribution.

• Truck unloading in city centres: where there is no room to manoeuvre a ride-on forklift, the high-lift pallet truck unloads directly from the truck into the shop – a classic application in central Bratislava or Kosice, and just as much in the historic centre of Zilina.

Luibl operates its own low-loader fleet and delivers high-lift pallet trucks throughout Slovakia and to Germany, Austria, Switzerland, Poland, Czechia, Italy, Hungary and other European countries. To the main economic centres (Bratislava, Kosice, Zilina, Nitra and surroundings) we deliver at short notice.

What is included in the rental:

• Inspection in line with occupational safety rules: all machines are inspected at handover. The inspection record is clearly displayed. For long-term rentals Luibl renews the inspection during the rental period.

• Integrated charger: the charger is built into the truck and works from a standard 230 V socket. No special installation required at the site.

• Handover report: written documentation of the machine's condition at delivery and return – protects both parties in the event of damage.

• Technician service on request: in the event of technical faults or operating questions, a service technician is dispatched promptly. Included in the service contract for long-term rentals.

• Young rental fleet: the machines are generally less than 3 to 5 years old. That means up-to-date technology (LiFePO4 battery, ergonomic tiller, modern safety features) and a low failure rate.

Which model suits your application – standard or initial lift, 1 t or 2 t class, simplex or triplex mast – depends on four factors: load capacity, required lift height, retracted height at the site and floor condition. A consultation with Luibl clarifies these points quickly and brings the right machine to your site.

Contact:

• Phone: 00800 2000 3000 (toll-free) · +49 (0) 851 756868-0

• Email: [email protected]

• Online enquiry: www.luibl.eu/kontakt/
