Maeda CC1908 hire – telescopic crawler mini crane in the 8-tonne class with pick & carry

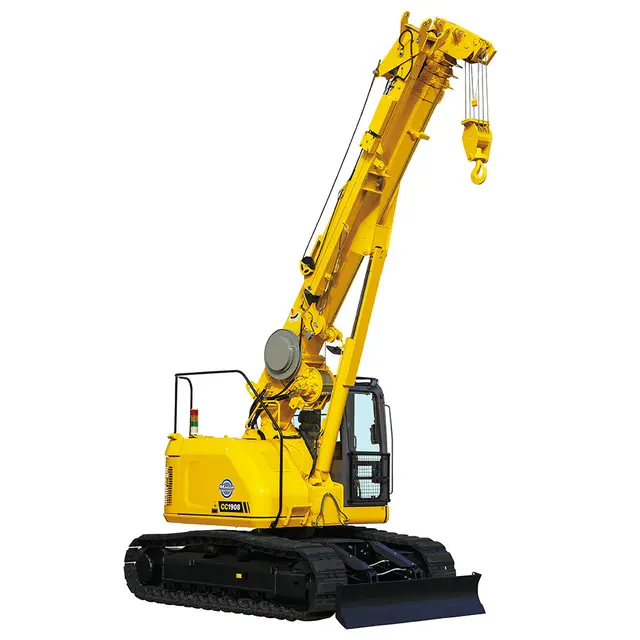

The Maeda CC1908 is a telescopic crawler crane from the Maeda CC crawler series: 8,100 kg lifting capacity, 3,500 kg travelling freely – without any outriggers. Luibl Rental delivers the machine serviced and inspected directly to your site.
Technical data

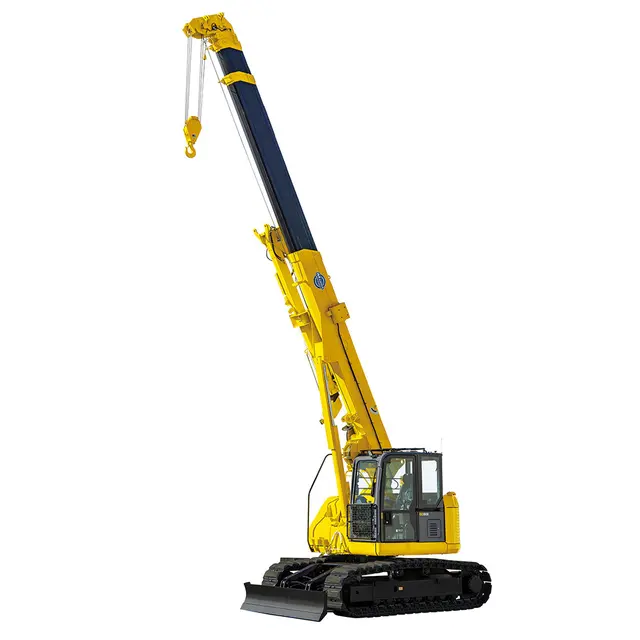

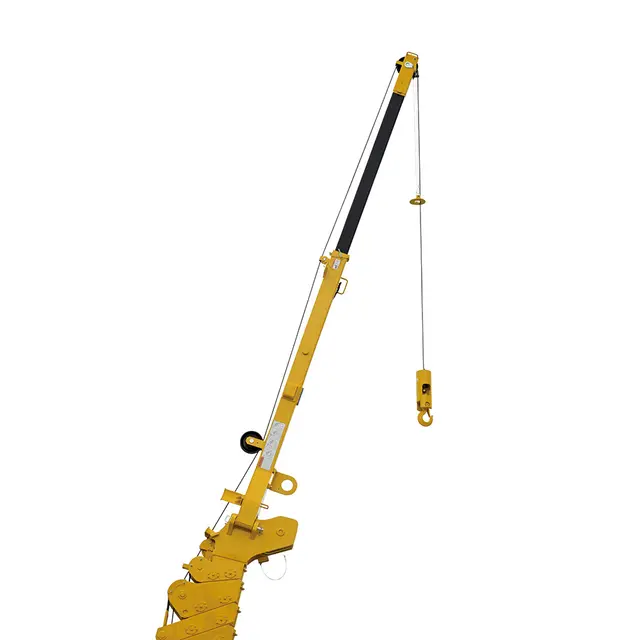

The CC1908 carries a fully automatic, 5-section telescopic boom with a maximum hook height of 20.1 m. With the optional fully hydraulic fly jib, the hook height increases to 26.0 m. The machine is powered by a Yanmar diesel engine. Operating weight: approx. 19,400 kg.
Key data at a glance:
Maximum lifting capacity: 8,100 kg at 2.8 m radius
Pick & carry: 3,500 kg, load can be travelled on the hook
Max. hook height: 20.1 m, 26.0 m with fly jib
Maximum radius: 19.23 m at 340 kg
Tail swing radius: 1,670 mm
Operating weight: approx. 19,400 kg
Engine: Yanmar
Steel tracks as standard, rubber pads optional
Dozer blade: optional, not standard

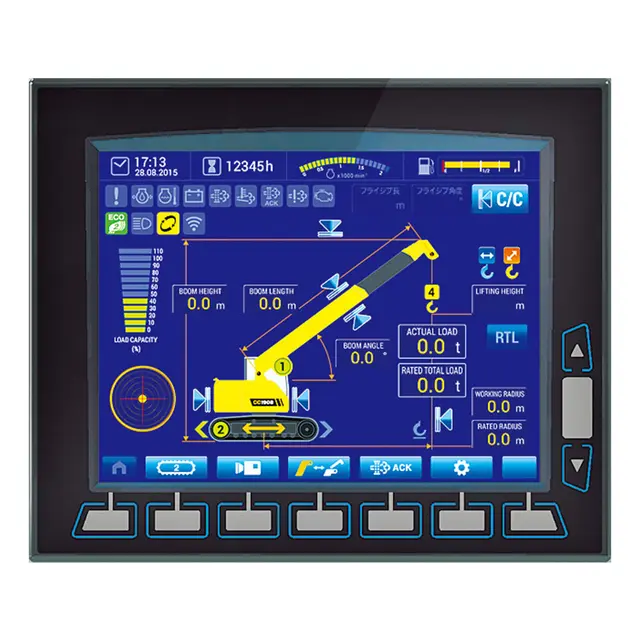

10.4-inch touchscreen as standard
360° surround-view camera system as standard
The standard steel tracks are suitable for outdoor areas and rough terrain. For work on industrial or concrete floors, the optional rubber pads are recommended.
Pick & carry with 3,500 kg – what it means in practice
The CC1908 travels 3,500 kg in pick & carry mode. For comparison: the CC985 and CC1485 are rated at 2,000 kg. The CC1908 therefore covers jobs in which loads between 2 and 3.5 tonnes have to be moved across the site without setting up outriggers.
This makes a direct difference on large projects: no outrigger areas to plan, no repositioning between lifts, no downtime in neighbouring areas. In adequately ventilated production halls, power plant buildings, tunnel or underground car park projects, this saves project time.
The fully hydraulic crawler undercarriage enables sensitive control even with heavy loads on uneven ground.
Applications
The CC1908 is the right crane when the 6-tonne class of the CC1485 is not sufficient and pick & carry above 2,000 kg is required:
Heavy industrial and plant installation: machine replacement in tight, adequately ventilated production halls, turbine and press installations with limited ceiling height, dismantling of heavy plant components during live operation
Infrastructure and bridge construction: setting heavy steel or precast concrete elements on sites without outrigger space for mobile cranes
Power plants and energy supply: lifting transformers, valve blocks and piping components in buildings with floor load restrictions
Specialist civil engineering: pick & carry for pipeline installation, drilling rig work or foundation projects in confined areas
Tunnelling and underground car park projects: lifting under ceiling height restrictions with adequate ventilation
Safety equipment
Standard equipment:
Programmable load moment limiter with working range limitation, adjustable virtual ceiling heights and obstacles
10.4-inch touchscreen in the enclosed, air-conditioned operator cab with panoramic roof
360° surround-view camera system, rear and front camera
Tipping alarm, acoustic and visual
Steel tracks as standard, rubber pads optional
Hydraulic safety valves on all cylinders
Overwind protection, winch
Slewing range limitation
Safety interlock
LED operating warning light and work lights
Data logger for complete job documentation
Emergency stop switch
Every rental machine is handed over serviced and inspected. On request, you receive a briefing on the machine at handover.
Hire the Maeda CC1908 from Luibl Rental
Luibl Rental delivers the CC1908 with its own low-loader fleet directly to your site; delivery and transport are organised as agreed. For long-term hire and large projects, we prepare individual quotations, with maintenance intervals included in the scope of services on request.
Service hours: Monday to Friday, 08:00–17:00
Enquiries via our contact form.
Frequently asked questions about the Maeda CC1908
What is the difference between the CC1908 and the CC1485?
The CC1485 lifts a maximum of 6,000 kg, the CC1908 8,100 kg. The more decisive difference is pick & carry: the CC1485 travels 2,000 kg, the CC1908 3,500 kg. The CC1908 is heavier at approx. 19,400 kg instead of approx. 14,400 kg. If the load is below 2 tonnes and weight or transport width are critical, the CC1485 or CC985 is the better choice.Is the dozer blade standard on the CC1908?
No. The dozer blade is optional on the CC1908 – please contact us if you need it for your project.Can the CC1908 be used in enclosed halls?
Fully enclosed halls without adequate ventilation are generally not suitable for diesel operation. For such situations, we advise on alternatives.Which crane from the CC series suits my project? A brief overview:
CC423: up to 2,930 kg, pick & carry 1,465 kg, width 1,740 mm – for very narrow access routes
CC985: up to 4,900 kg, pick & carry 2,000 kg, width 2,320 mm – medium lifting capacity
CC1485: up to 6,000 kg, pick & carry 2,000 kg, width 2,490 mm – heavy loads, more compact
CC1908: up to 8,100 kg, pick & carry 3,500 kg – 8-tonne class
