RMK-1485 | Maeda CC1485

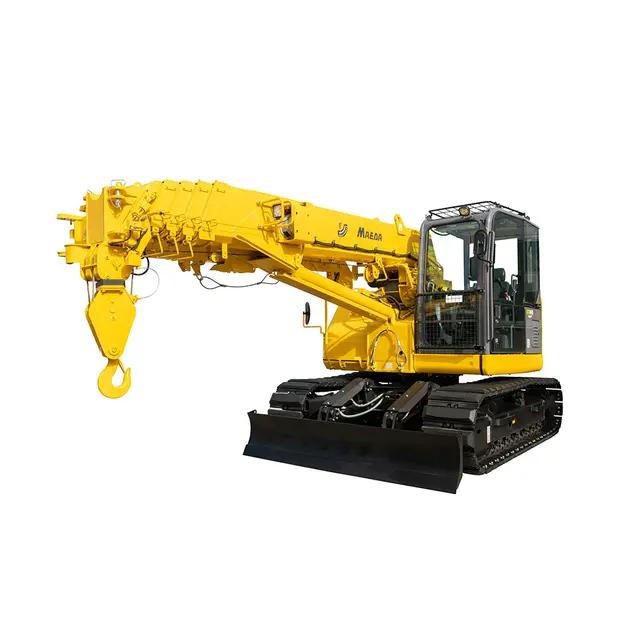

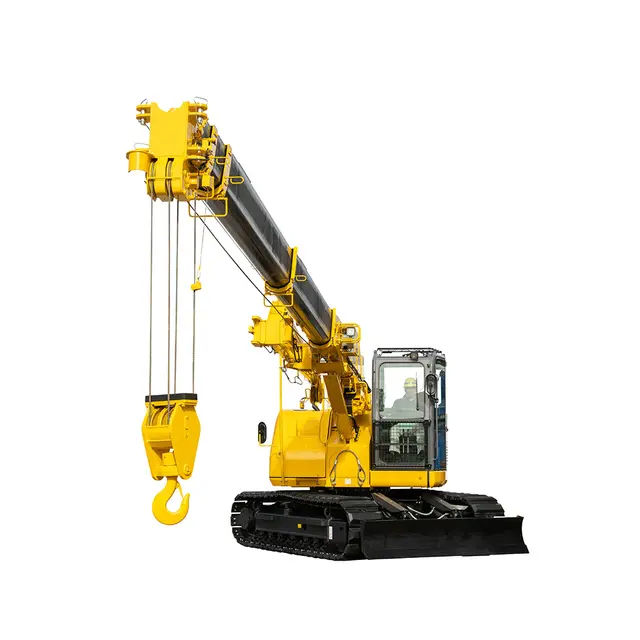

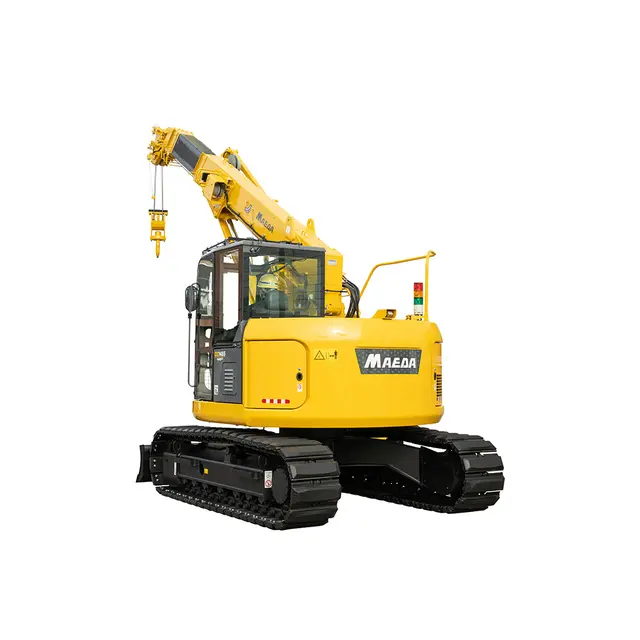

Maeda CC1485 Hire – Telescopic Crawler Mini Crane with 6 t Capacity for Heavy Pick & Carry Work
The Maeda CC1485 is a telescopic crawler crane from the Maeda CC series: 6,000 kg load capacity at 2.6 m radius, 2,000 kg travel with load – without extending any outriggers. Luibl Rental delivers the machine serviced and inspected directly to your site.
Technical Data

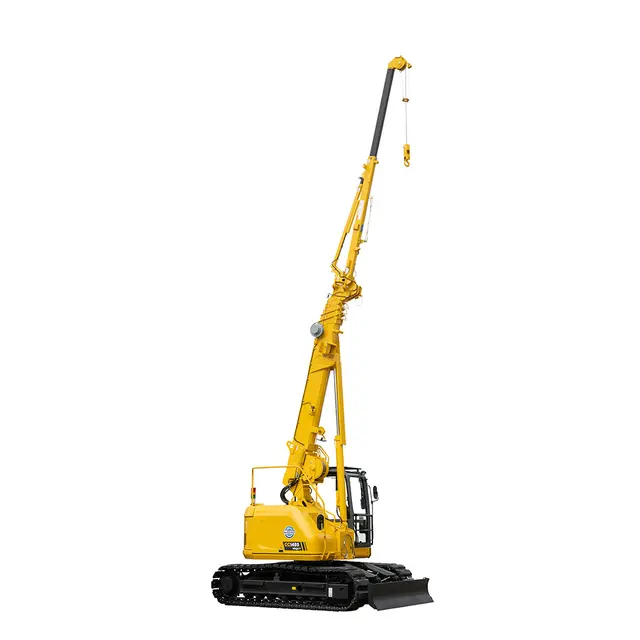

The CC1485 carries a fully automatic 5-section telescopic boom with a pentagonal cross-section. The maximum hook height is 16.7 m; with the optional two-piece fly jib it increases to 22.0 m. The machine is powered by an Isuzu 4LE2 diesel engine. Transport dimensions: 6,560 × 2,490 × 2,865 mm, dead weight approx. 14,400 kg.
Key data at a glance:
Maximum load capacity: 6,000 kg at 2.6 m radius
Pick & carry: 2,000 kg, travel with load on the hook

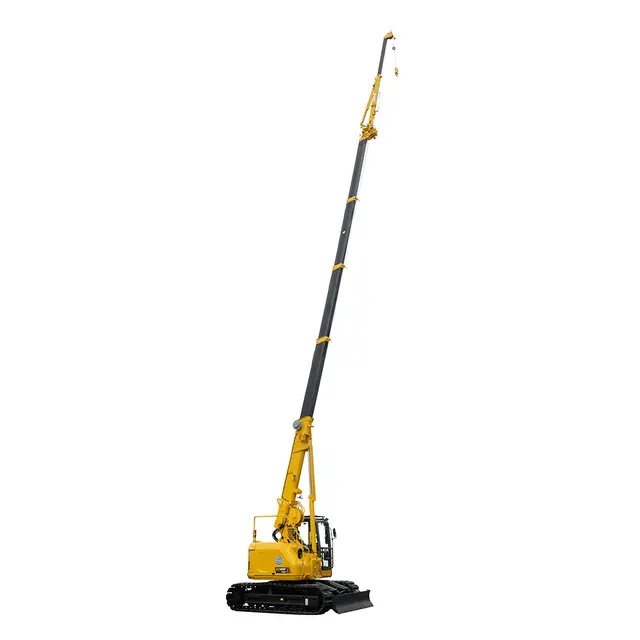

Max. hook height: 16.7 m, 22.0 m with fly jib
Maximum radius: 16.1 m at 430 kg
Transport width: 2,490 mm
Transport height: 2,865 mm
Dead weight: approx. 14,400 kg
Engine: Isuzu 4LE2
Steel tracks as standard, rubber pads optional
Dozer blade: optional, not standard
Optional fly jib: 2-piece, hook height 22.0 m
The standard steel tracks distribute the weight evenly over the ground. For work on industrial or concrete floors, the optional rubber pads are recommended to prevent surface damage.
Pick & Carry in the 6-Tonne Class
Cranes in this capacity class normally require extended outriggers with a considerable footprint. The CC1485 works without outriggers. The crawler undercarriage provides full stability – the crane can travel directly with 2,000 kg on the hook.
This makes a tangible difference on projects where loads have to be moved over longer distances: no setting up outriggers between individual lifts, no cordoning off areas for outrigger pads, no downtime in parallel work areas. In adequately ventilated production halls and power plant buildings or on urban sites without a set-up area, this has a direct impact on project duration.
The fully hydraulic crawler undercarriage allows sensitive control – even with heavy loads on uneven ground or at embankment edges.
Applications
The CC1485 is suited to situations where load capacity and manoeuvrability are required at the same time in very confined spaces:
Industrial and plant installation: machine replacement and heavy-load installation in existing, adequately ventilated production halls with limited ceiling height and narrow aisles
Specialist foundation engineering and infrastructure construction: placing heavy precast elements, steel beams and bridge components on sites without space for outriggers
Power plants and energy supply: dismantling and installing plant components in buildings with structural floor load restrictions
Steel construction and heavy-load installation: transporting and positioning steel beams, machine foundations or heavy modules over several metres
Infrastructure projects: lifting work in adequately ventilated tunnel and underground projects, hook height below ground down to -24.5 m with 4-part reeving
Safety Equipment
Standard equipment according to the data sheet:
Programmable load moment limiter with fully programmable working envelope, working range limitation for virtual ceiling heights and obstacles
Large colour display in the enclosed, air-conditioned operator cab
Inclination alarm, tipping alarm, acoustic and visual
Steel tracks as standard, rubber pads optional
Hydraulic safety valves on all cylinders
Over-hoist protection, winch
Reversing camera
Data logger for complete documentation of operations
Safety interlock
LED operating warning light and work lights
Emergency stop switch
Every rental machine is handed over serviced and inspected. On request, you will receive an induction to the machine at handover.
Hire the Maeda CC1485 from Luibl Rental
Luibl Rental delivers the CC1485 to your site with its own low-loader fleet; we organise delivery and transport by arrangement. For long-term hire and large projects, we prepare individual quotes, with maintenance intervals included in the scope of services on request.
