MIK-815 | Maeda MC815C

Bild 0 einer Mietmaschine vom Typ MIK-815 | Maeda MC815CBild 1 einer Mietmaschine vom Typ MIK-815 | Maeda MC815CBild 2 einer Mietmaschine vom Typ MIK-815 | Maeda MC815CBild 3 einer Mietmaschine vom Typ MIK-815 | Maeda MC815C
Vorschaubild 0 einer Mietmaschine vom Typ MIK-815 | Maeda MC815CVorschaubild 1 einer Mietmaschine vom Typ MIK-815 | Maeda MC815CVorschaubild 2 einer Mietmaschine vom Typ MIK-815 | Maeda MC815CVorschaubild 3 einer Mietmaschine vom Typ MIK-815 | Maeda MC815C

Technical data

Below you will find all product details.

Lifting height
19,60 m
Lifting capacity
8.090 kg
Lateral reach
18,80 m
Dimensions
5,90 m x 1,67 m x 2,49 m
Weight
9.700 kg
Make
Maeda
Model
MC815C
Article designation
MIK-815

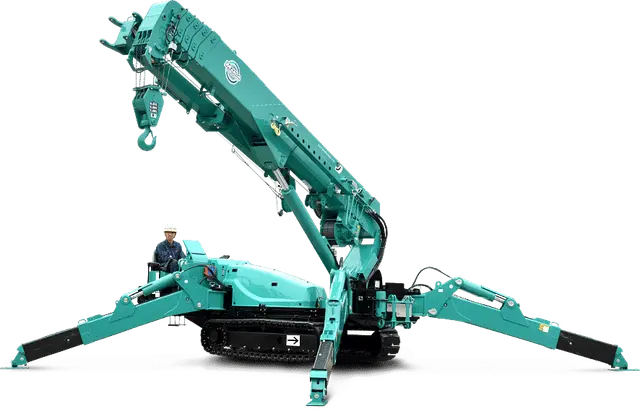

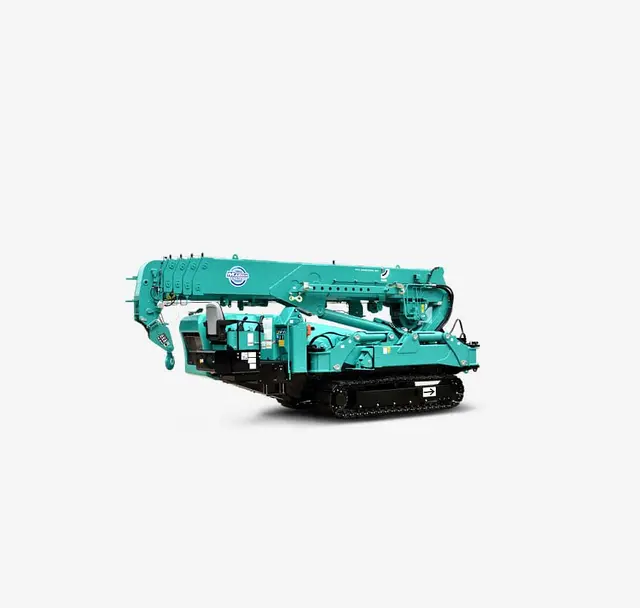

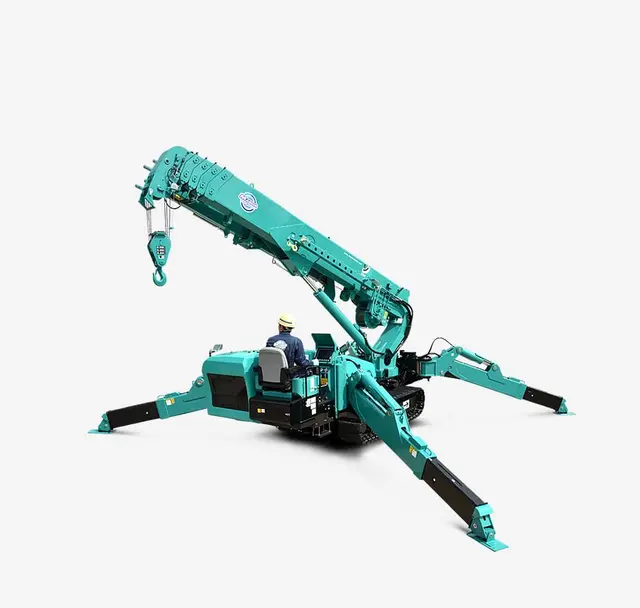

MIK-815 | Maeda MC815C – mini crane

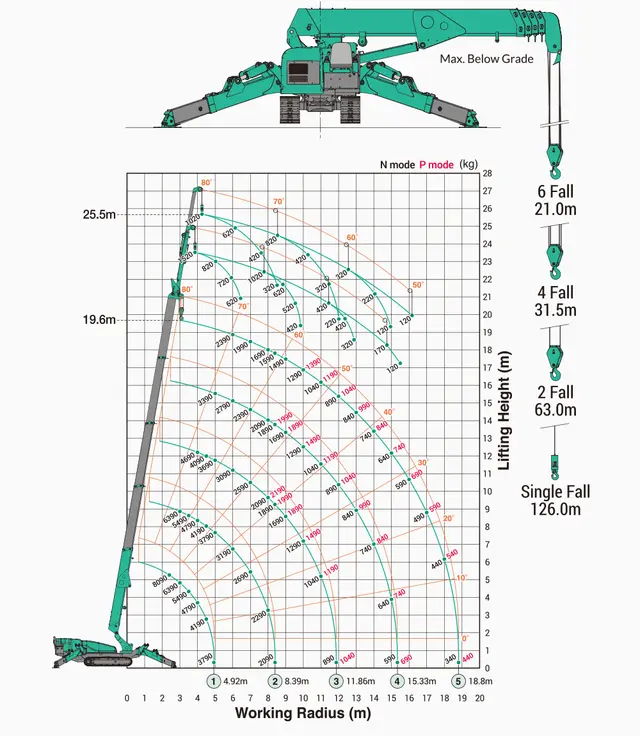

The Maeda MC815C is a mini crane with a high lifting capacity and a versatile range of applications. With a lifting capacity of 8,090 kg at a radius of 2.4 m, this crane is also suitable for heavy loads. The maximum hook height is 19.6 m, and a hydraulic fly jib can optionally be fitted for additional flexibility. With a lift height of 19.6 m and a maximum working radius of 18.8 m at 340 kg, the MC815C offers the reach and precision required for demanding lifting work. Its operating weight of 9,700 kg provides stability, while the crane still remains flexible and freely mobile. The MC815C is particularly suitable for tasks in which heavy loads have to be positioned precisely. With its robust construction and advanced technology, this mini crane is well suited to construction and installation projects.

Technical data

  • Lift height: 19.6 m
  • Lifting capacity: 8,090 kg
  • Lateral reach: 18.8 m
  • Width: 6.52 m
  • Height: 19.6 m

Applications and benefits

The drive concept supports a variety of operating conditions.

Check availability now and request a quotation.
