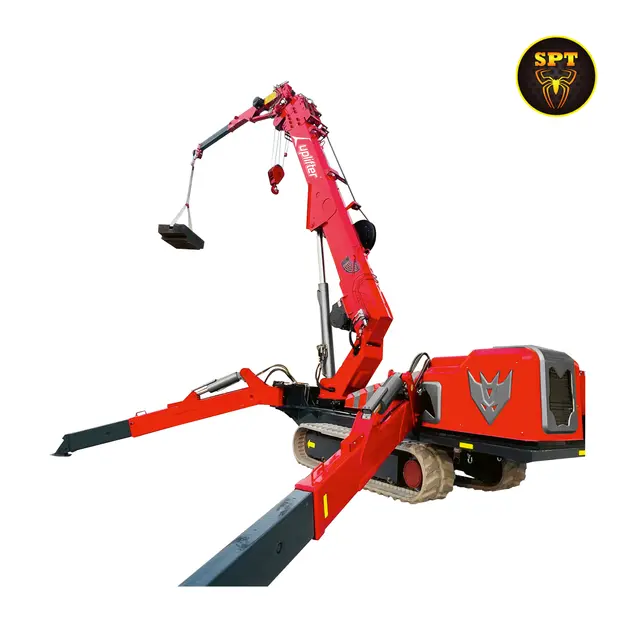

SPT1009 hire – mini crane with 10,000 kg lifting capacity
The SPT1009 lifts up to 10,000 kg – covering lifting tasks for which even the SPT499 is no longer sufficient. With a maximum hook height of 20.2 m (up to 28.2 m with fly jib) and a working radius of up to 19.0 m, the SPT1009 moves large steel and precast concrete elements, heavy machine components and plant parts – precisely, and even where a conventional truck-mounted crane no longer has access. At Luibl Rental you can hire the SPT1009 at short notice, across Europe and with maintenance from a single source.
SPT1009 technical data
| Parameter | Value |
|---|---|
| Manufacturer | SPT |
| Max. lifting capacity | 10,000 kg |
| Working radius | max. 19.0 m |
| Max. hook height | 20.2 m (28.2 m incl. fly jib) |
| Gradeability | max. 23° or 42% |
| Lifting below ground level | 20.0 m (6-fall reeving), 30.0 m (4-fall reeving), 62.0 m (2-fall reeving), 125.0 m (1-fall reeving) |
| Max. rope length | 125.0 m |

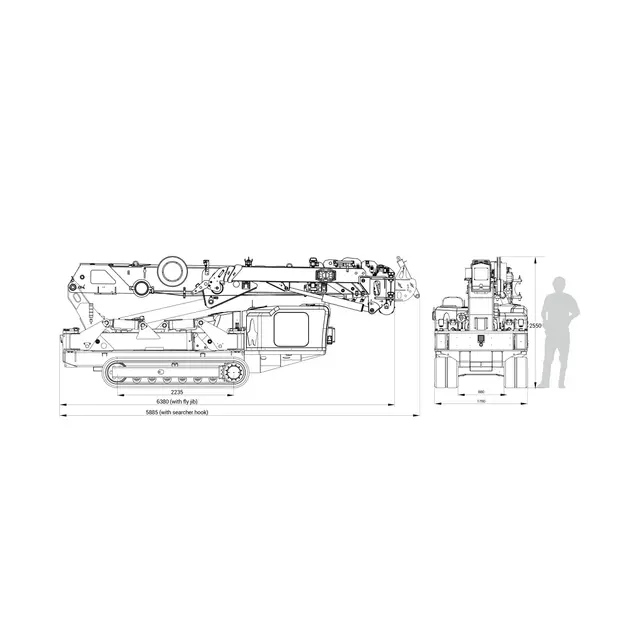

| Dimensions (L x W x H) | 6.38 m x 1.78 m x 2.55 m |
| Min. footprint (outriggers extended) | 5.39 m x 5.73 m |
| Drive | Hybrid: diesel / electric 380 V |
| Diesel engine | YANMAR 4TNV88, 29.1 kW at 2,400 rpm |
| Dead weight | approx. 11,800 kg |
| Standard equipment | Fly jib, load hook, engine heater, hybrid drive, radio remote control with integrated digital load display, hour meter, 1/2/4-fall hook block, black rubber tracks, 360° slewing range, over-winding protection, hydraulic safety valves, levelling indicator, tilt alarm, emergency stop switch, load moment limiter, operating warning light, outrigger locking, toolbox |
Applications of the SPT1009
Heavy-duty steel construction and plant engineering
With 10,000 kg lifting capacity, the SPT1009 lifts large steel structures and plant components that are too heavy even for the SPT499 – reaching locations that a truck-mounted crane with this lifting power cannot even approach.
Precast construction and concrete element installation
Large precast concrete elements can be placed precisely with the SPT1009, even when the site offers no space for a conventional mobile crane.
Power plant and industrial plant engineering
When replacing heavy turbine components, generators or piping systems in industrial plants, the combination of high lifting capacity and compact design ensures access even in densely built plant areas.
Large-format glass and facade installation
Combined with a suitably sized vacuum glass lifter, the SPT1009 also lifts heavy and large-format glass or facade elements as required on high-rise or commercial building projects.
Bridge and infrastructure construction
For maintenance and installation work on bridges or infrastructure structures, the high lifting capacity allows heavy components to be lifted even in confined spaces.
Hire or buy the SPT1009?
| Criterion | Hire from Luibl Rental | Purchase |
|---|---|---|
| Capital commitment | none, predictable rental costs | high investment |
| Maintenance & service | included | own responsibility |
| Availability | at short notice, across Europe | lead time depending on manufacturer |
| Flexibility in project size | switch to a smaller model (SPT499, SPT299) per job possible | tied to one model |
| Makes sense for | project-based extra-heavy lifting that does not occur regularly | permanent, very frequent extra-heavy lifting in your own fleet |
Hiring is particularly worthwhile for projects that only need this capacity class temporarily: investment risk, maintenance and value retention remain with Luibl Rental.
Why hire the SPT1009 from Luibl Rental?
- Part of the Luibl Rental Group: Europe-wide rental and service network
- High lifting capacity: 10,000 kg – for heavy-duty tasks that smaller mini cranes cannot handle
- Short-notice availability: enquire today, prompt feedback on price and delivery date
- Europe-wide use: transport and set-up can also be organised across national borders
- Maintenance & service included: no hidden follow-up costs
Frequently asked questions about the SPT1009
What is the lifting capacity of the SPT1009?
The SPT1009 lifts a maximum of 10,000 kg at minimum radius.
Is the SPT1009 really available for hire at Luibl Rental?
The SPT1009 is also offered for hire as part of our crane range. Contact us for current availability at your location and for your desired period.
What is the difference from the SPT499?
The SPT1009 lifts twice as much as the SPT499 (10 t instead of 5 t) and reaches a greater hook height, but is also considerably heavier and wider. For extra-heavy lifting projects the SPT1009 is the right choice; for medium loads the SPT499 is usually sufficient.
How quickly is the SPT1009 available?
If available in the rental fleet, we deliver at short notice by agreement, also across Europe.
Enquire about the SPT1009 now
Check the current availability of the SPT1009 for your project. Our team will get back to you promptly with price and delivery date.
