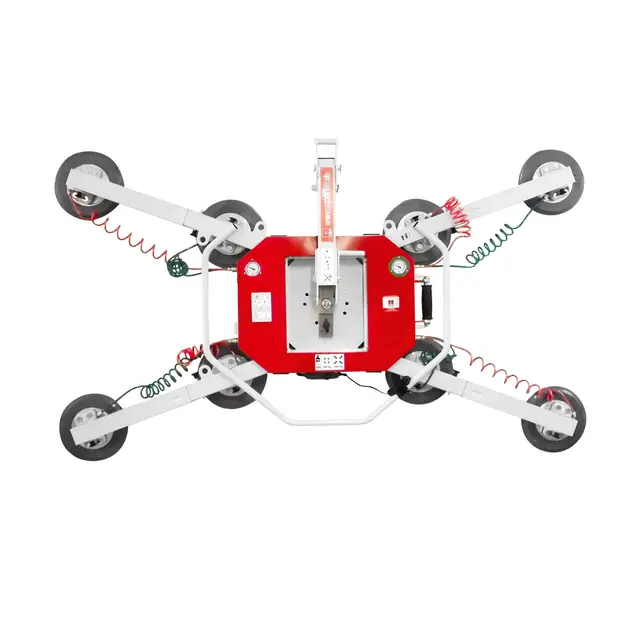

VAS-600 | Uplifter vacuum lifter UPG600
Uplifter UPG600 vacuum lifter hire – glass vacuum lifter up to 600 kg
The Uplifter UPG600 vacuum lifter is an attachable glass vacuum lifter for the medium to heavy class: depending on configuration, it lifts 300 kg (4 suction cups), 450 kg (6 suction cups) or 600 kg (8 suction cups). Spring-loaded, articulated suction pads compensate for inclined and slightly uneven surfaces, and an optional remote control makes it easier to work at a distance. As the owner of Uplifter, Luibl Group rents out the UPG600 at short notice, serviced, inspected and throughout Europe.
Technical data: Uplifter UPG600 vacuum lifter
Data from the official Uplifter product information. We will confirm binding values for your carrier machine and component on request.
| Feature | Value |
|---|---|
| Load capacity (4 suction cups) | 300 kg |
| Load capacity (6 suction cups) | 450 kg |
| Load capacity (8 suction cups) | 600 kg |
| Suction pads | spring-loaded plunger with joint (tilt compensation) |
| Operation | remote control and push-button control optional |
| Rotation | manual 360°, detent every 45° |
| Suction cups | silicone-free (no marks) |
| Mounting | on any machine with a load hook (crane, mini crane, telehandler, excavator) |
| Vacuum generation / power supply | mains-independent 12 V battery power supply |
| Own weight / dimensions | approx. 89 kg; length max./min. 2.57/1.13 m; width max./min. 1.35/0.91 m |
Design and equipment
Two features set the UPG600 apart from the smaller models. First, the spring-loaded, articulated suction pads: they adapt to inclined or slightly profiled surfaces and reliably create a vacuum even where rigid suction cups would slip – for example with roof glazing or curved elements. Second, the optional remote and push-button control, which allows one person to trigger suction and release from a safe distance. The load capacity increases with the number of suction cups from 300 to 450 to 600 kg.
Suitable carrier machines
The UPG600 is attached to a lifting device with a load hook. For higher loads and greater reach, telehandlers are the right choice; in confined spaces, mini cranes. Luibl Group keeps both carrier classes in its rental fleet and supplies them together with the vacuum lifter on request.
Applications
- Facade construction: installing heavier insulating glass units up to 600 kg.
- Roof and sloped glazing: thanks to the tilt compensation of the spring-loaded suction pads.
- Metal and element construction: handling heavy sheets and panels.
- Industry: glazing of continuous rooflights and large fixed lights.
Advantages of hiring from Luibl
- Close to the manufacturer: directly from the owner of Uplifter, handed over inspected.
- Optional remote control: included on request.
- Vacuum lifter plus carrier: telehandler or mini crane from a single source.
- Inspected, at short notice, throughout Europe.
Hire or buy?
The UPG600 is an attachment with a noticeable purchase price that only pays off with regular use. Hiring keeps capital free, covers inspection and maintenance and allows you to switch between vacuum lifter models depending on the weight of the glass pane.
| Criterion | Hire from Luibl | Purchase |
|---|---|---|
| Capital employed | project-related | tied up once |
| Inspection & maintenance | included | own effort |
| Equipment (remote control) | optionally bookable | must be purchased |
| Carrier machine | can be hired as well | separate |
Safety
The UPG600 is handed over serviced and inspected. On inclined surfaces, the permissible angle of inclination must be observed despite the spring-loaded suction pads. The permissible load capacity also depends on the carrier machine and its load centre. We hand over the inspection certificates together with the device.
Other vacuum lifters and carrier machines

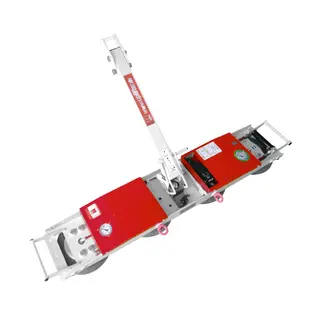

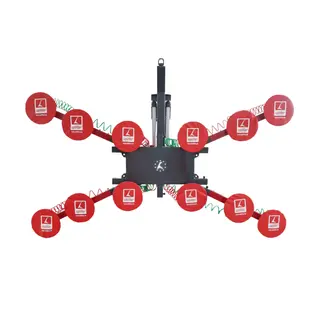

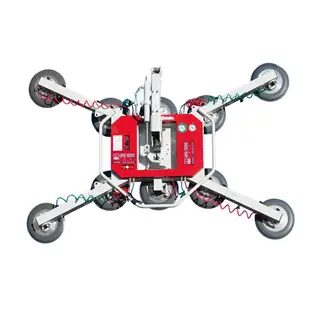

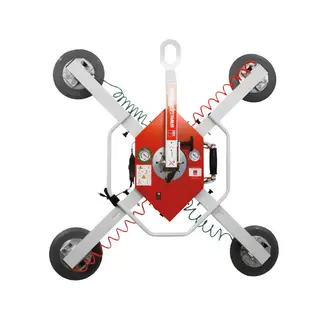

Lighter tasks are handled by the UPG350 and UPG450; for heavy loads, the UPG1000 and UPG1200 are available. The Glassworker series offers a self-propelled glazing robot. A mini crane is suitable as a carrier.
Frequently asked questions about the Uplifter UPG600
How much does the UPG600 lift?
Depending on the number of suction cups, 300 kg (4 suction cups), 450 kg (6 suction cups) or 600 kg (8 suction cups).
Is the UPG600 suitable for inclined surfaces?
Yes. The spring-loaded, articulated suction pads compensate for inclines and are therefore also suitable for roof and sloped glazing.
Is there a remote control?
Remote and push-button control are available as options and can be added to the hire.
What is the vacuum lifter attached to?
To any lifting device with a load hook – such as a telehandler, mini crane, crane or excavator; Luibl supplies the carrier machine on request.
Is the UPG600 inspected?
Yes, every device is serviced and inspected; the certificates are included.
Request the Uplifter UPG600 now
Request your non-binding rental quote for the UPG600 – including optional remote control and a suitable carrier machine.
