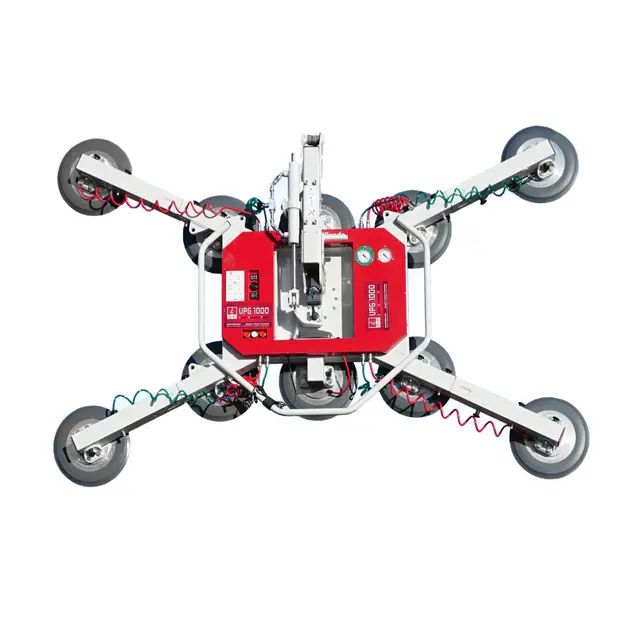

VAS-1000 | Uplifter vacuum lifter UPG1000

Bild 0 einer Mietmaschine vom Typ VAS-1000 | Uplifter vacuum lifter UPG1000
Vorschaubild 0 einer Mietmaschine vom Typ VAS-1000 | Uplifter vacuum lifter UPG1000

Technical data

Below you will find all product details.

Uplifter UPG1000 Vacuum Lifter Hire – Heavy-Duty Glass Vacuum Lifter up to 1,000 kg

The Uplifter UPG1000 vacuum lifter is the heavy-duty glass vacuum lifter of the UPG series. Its lifting capacity scales with the number of suction pads from 400 kg (4 suction pads) to 1,000 kg (10 suction pads) – allowing it to install large-format insulating glass units and heavy panels that compact lifters can no longer handle. Like all UPG models, it is attached to a lifting device with a load hook. As the owner of Uplifter, Luibl Group rents out the UPG1000 at short notice, maintained, inspected and Europe-wide.

Technical Data: Uplifter UPG1000 Vacuum Lifter

Information from the official Uplifter product data. We confirm binding values for your carrier machine and component on request.

FeatureValue
Lifting capacity (4 suction pads)400 kg
Lifting capacity (6 suction pads)600 kg
Lifting capacity (8 suction pads)800 kg
Lifting capacity (10 suction pads)1,000 kg
Rotationmanual 360°, indexing every 45°
Suction padssilicone-free (no marks)
Mountingon any machine with a load hook (crane, telehandler, excavator, mini crane)
Operation / safety systemradio remote control for suction/release; two independent vacuum circuits with double safety
Vacuum generation / power supplymains-independent 12 V battery power supply
Dead weight / dimensionsapprox. 126 kg; length max./min. 2.72/1.25 m; width max./min. 1.54/1.01 m

Scalable Lifting Capacity via the Number of Suction Pads

The principle of the UPG1000: instead of needing a separate device for each load class, the lifting capacity is set via the number of suction pads – from four suction pads for 400 kg in 200 kg steps up to ten suction pads for the full 1,000 kg. This makes the lifter versatile: the same base unit covers a broad range from medium-sized to large-format elements. Manual 360° rotation with 45° indexing allows the load to be aligned without repositioning the carrier machine.

Suitable Carrier Machines

Handling 1,000 kg on a facade requires a carrier machine with corresponding lifting power and reach. In practice, these are larger telehandlers or cranes; for confined indoor sites, powerful mini cranes are an option. Luibl Group keeps suitable carriers in its rental fleet and matches load capacity and reach to your project.

Applications

  • Large-format facade glazing: heavy insulating glass units in commercial and contract construction.
  • Industrial and hall construction: large fixed glazing and skylight panels.
  • Heavy panel logistics: natural stone, concrete and metal panels up to 1,000 kg.
  • Special construction: panoramic and special panes with an existing crane.

Advantages of Hiring from Luibl

  • Close to the manufacturer: directly from the owner of Uplifter, handed over ready for use.
  • Lifter and heavy-duty carrier from a single source: a suitable telehandler or crane can be hired as well.
  • Handed over inspected: inspection and maintenance included.
  • At short notice & Europe-wide with organized logistics.

Hire or Buy?

A heavy-duty lifter such as the UPG1000 is expensive to purchase and store and is usually only needed for certain large projects. Hiring shifts investment, inspection and maintenance to the rental company, making it the more economical choice for project-related peaks.

CriterionHire from LuiblPurchase
Acquisitionnone, on a rental basishigh investment
Economical froma single projecthigh utilization
Inspection & maintenanceincludedown effort
Heavy-duty carriercan be hired as wellmust be kept separately

Safety

With loads of up to 1,000 kg, safety-related care is crucial. The UPG1000 is handed over maintained and inspected. The UPG1000 works with two independent vacuum circuits and double safety. The permissible load also depends on the carrier machine. We hand over the inspection certificates with the device and offer an equipment briefing.

Other Vacuum Lifters and Carrier Machines

For medium loads, the UPG600 and UPG450 are more economical; the highest lifting capacity is offered by the UPG1200. A self-propelled glass robot for large panes is the Glassworker GW1125. A mini crane is suitable as a carrier.

Frequently Asked Questions about the Uplifter UPG1000

How do I set the lifting capacity?

Via the number of suction pads: 4 = 400 kg, 6 = 600 kg, 8 = 800 kg, 10 = 1,000 kg.

Which carrier machine do I need for 1,000 kg?

A lifting device with suitable lifting power and reach, such as a larger telehandler or crane. Luibl can supply the suitable carrier machine on request.

Do the suction pads leave marks?

No, they are silicone-free.

Is a briefing advisable?

For this load class we recommend an equipment briefing; it can be booked as an option.

Is the inspection included?

Yes, every device is maintained and inspected; the certificates are included.

Enquire about the Uplifter UPG1000 Now

Request your non-binding rental quote for the UPG1000 – we will match the number of suction pads and the carrier machine to your project.
