Technical data

Below you will find all product details.

Working height
40,10 m
Lifting capacity
454 kg
Lateral reach
24,38 m
Platform height
38,10 m
Dimensions
13,28 m x 2,49 m x 3,05 m
Weight
20.700 kg
Drive unit
Diesel
Make
Genius
Model
SX-125XC
Article designation
TB-401X

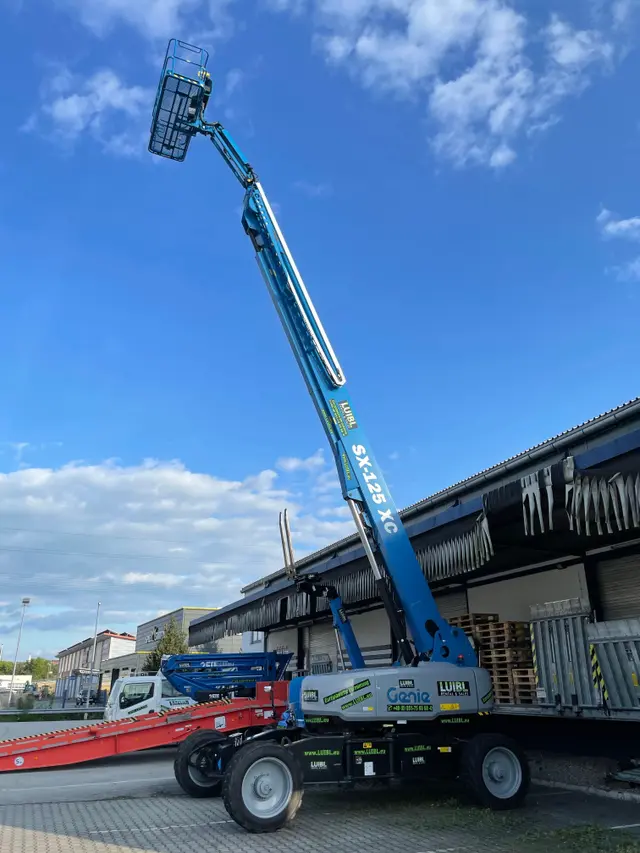

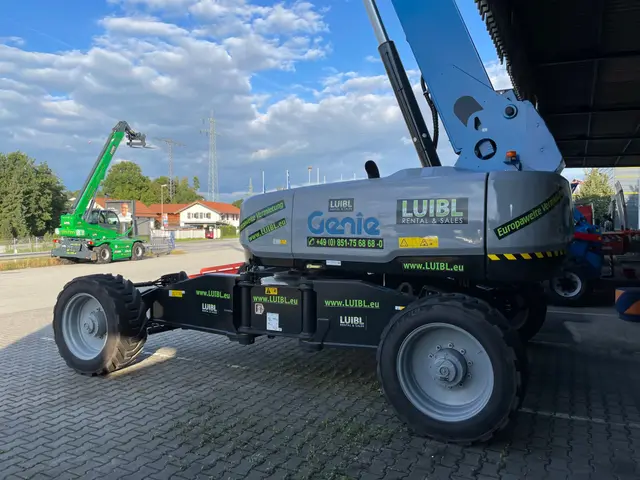

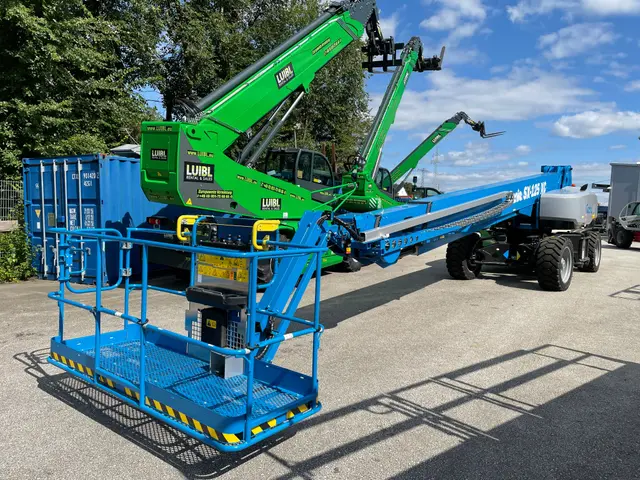

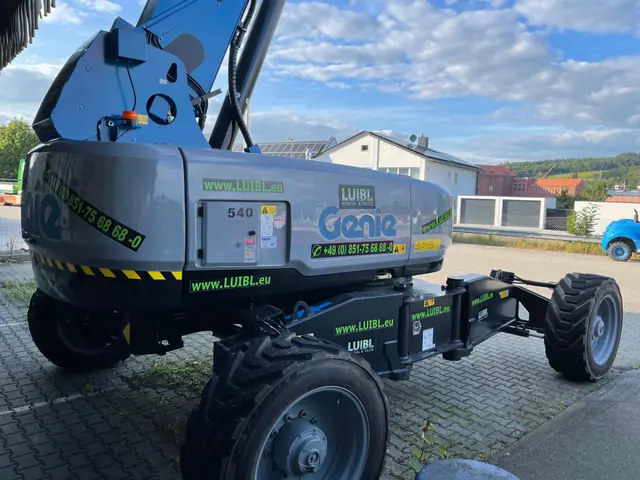

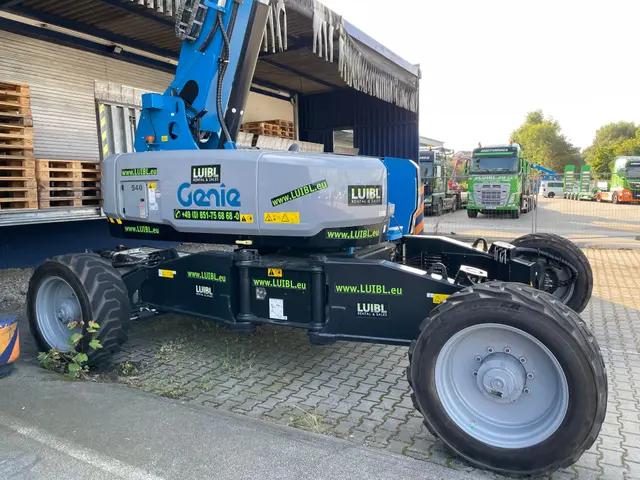

Genie SX-125XC hire: the 40 m telescopic boom lift for great working heights

Anyone working at 40 metres who cannot compromise on capacity or stability quickly ends up with the Genie SX-125XC. The machine is a pure telescopic boom lift – no articulation, no compromise on outreach. Luibl Rental hires out the SX-125XC across Europe, delivers it with its own low-loader and hands the machine over serviced and inspected on your site, with operator familiarisation on request.

Technology: why choose the SX-125XC?

What sets the SX-125XC apart is its XC technology (Xtra Capacity): the machine offers two defined capacity zones instead of a single platform load. This allows more flexible use – more on this in the next section.

Added to this is the Genie X-Chassis™: the chassis retracts compactly for transport and is extended on site. A wide track means high tipping stability, even with the telescopic boom fully extended at 40 metres. On site, that matters. When moving to the next job, the reduced transport dimensions save you logistics costs.

At a glance:

  • Working height: 40.10 m

  • Horizontal outreach: up to 24.38 m

  • Below-ground reach: 2.69 m

  • Drive: diesel, four-wheel drive, four-wheel steering

  • Transport width: compact thanks to the retracted X-Chassis™

  • Off-road capability: up to 45 % gradeability

On rough terrain, four-wheel steering is not a luxury but a necessity. You can manoeuvre the machine, which weighs around 20 tonnes, with precision – even on confined sites where a normal vehicle would need a three-point turn.

Applications & practical benefits of the 40 m class

Facade work on industrial halls and high-bay warehouses: with the telescopic boom fully extended and a simultaneous outreach of more than 24 metres, installers reach facade sections that would be out of reach for a scissor lift or a simple telescopic boom. The X-Chassis™ keeps the machine stable even at maximum outreach – no repositioning, no relocating.

Bridge and infrastructure inspection: the 2.69 m below-ground reach is a rarely used but decisive advantage. Bridge girders, channel structures or harbour structures can be inspected from the platform without erecting special constructions. The platform travels below ground level – saving time and external scaffolding costs.

Steel construction and hall assembly: whatever the load zone, welding at height requires space in the platform, tools and a stable footing. The SX-125XC delivers exactly that. Thanks to diesel four-wheel drive, the machine is fully operational even on unpaved shell construction sites.

Wind energy and tower construction: for work on wind turbines, silos or chimneys up to 40 metres, the SX-125XC offers the required working height combined with a mobility that fixed scaffolding lacks.

Capacity in focus: 300 kg vs. 454 kg

XC technology defines two clearly separated load zones:

Zone 1 – unrestricted capacity: 300 kg. Full horizontal outreach, no restriction of freedom of movement. This zone corresponds to the standard of a conventional telescopic boom lift in this class.

Zone 2 – restricted capacity: 454 kg. Up to 454 kg is possible when the machine is in a defined position – that is, at low outreach or with an optimised boom position. Automatic envelope control handles monitoring in real time. It cannot drive the machine into an unstable position – the system actively blocks the corresponding movement.

What does this mean in practice? An installation team with heavy tools and materials gets the required platform load at 40 metres – without external lifting equipment. Three people fit in the platform. This reduces trips and increases productivity per shift.

Safety and control on site

The SX-125XC is equipped with the Lift Guard™ contact alarm: the sensor registers contact between the platform and an obstacle and stops the movement immediately. When working on hall girders, ceilings or densely packed industrial structures, this prevents damage – to the machine and to the building.

The chassis tilt sensor continuously monitors the ground the machine stands on. If the terrain is too uneven, the system blocks the extension movement before it becomes dangerous. On-site zero-load calibration ensures that all sensor values are correctly adjusted at the start of operation – regardless of stresses during transport.

Luibl Rental hands over the SX-125XC serviced and inspected and familiarises the operating personnel at handover.

How the hire works

  1. Enquiry – you describe your requirements: working height, terrain type, duration of use. Our team checks availability and prepares a specific quotation.

  2. Quotation – you receive a binding hire quotation with delivery date, price and terms.

  3. Delivery – Luibl Rental delivers with its own low-loader fleet directly to your site. As agreed, across Europe, without intermediaries.

  4. Familiarisation – the Luibl Rental technician instructs the operating personnel on site.

Frequently asked questions about the Genie SX-125XC

What is the maximum capacity of the Genie SX-125XC? The SX-125XC has two capacity zones: 300 kg unrestricted and 454 kg in the restricted zone. Automatic envelope control monitors which load is permitted in which machine position.

Is the SX-125XC an articulating or a telescopic boom lift? A pure telescopic boom lift. There is no articulating arm. The straight telescopic boom enables the maximum horizontal outreach of 24.38 m without any loss of reach caused by an articulation point.

What drive does the SX-125XC have? Diesel engine with four-wheel drive and four-wheel steering. Exclusively for outdoor use – fully operational on construction sites, gravel or mud.

How is the machine delivered? Luibl Rental delivers with its own low-loader directly to the site. Thanks to the retractable X-Chassis™, the transport dimensions are compact. You do not need to coordinate any external logistics.

Is operator familiarisation included in the hire price? Yes. At handover, a Luibl Rental technician instructs the operating personnel in the operation of the SX-125XC.

Can the SX-125XC be used on uneven terrain? Yes. The chassis tilt sensor continuously monitors the ground the machine stands on. The machine can be driven on gradients of up to 45 %. The system automatically blocks steeper inclines.

Check availability and request a quotation now.
