TB-206 | Zoomlion ZT18JE-Li

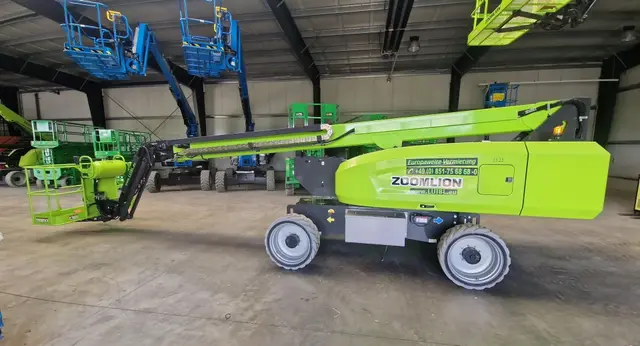

Zoomlion ZT18JE-Li hire – electric telescopic boom lift with 20.6 m working height
The Zoomlion ZT18JE-Li is a fully electric telescopic boom lift with 20.60 m working height, 13.30 m horizontal outreach and 300 kg platform capacity. It operates with zero local emissions and considerably more quietly than a comparable diesel machine – making it suitable for jobs where exhaust fumes or noise rule out other options. At Luibl you can hire the ZT18JE-Li across Europe, with transport and familiarisation on request.
20.60 m working height and 13.30 m horizontal outreach
With 20.60 m working height, the ZT18JE-Li reaches the eaves of a five-storey building, roof trusses in standard halls and lighting or ventilation systems under typical industrial ceilings. In practice, horizontal outreach is often more decisive than height alone: 13.30 m means you can approach the work point without positioning the machine directly underneath it. This lets you reach a facade, roof edge or plant component across green areas, rail tracks, racking or stored building components.
The two-section telescopic boom is additionally fitted with an articulating jib that swings through a range of 135° (−60° to +75°). This lets you guide the platform downwards over an obstacle or up to a ceiling structure from below – work points that a straight telescopic boom without a jib cannot reach. The platform measures 1.83 × 0.76 m, carries 300 kg and rotates ±90° to the left and right. The superstructure rotates continuously through 360°.
Zero-emission lithium-ion drive for sensitive applications
The ZT18JE-Li is powered by a lithium-ion battery rated at 51.2 V and 315 Ah. In operation it produces no exhaust gases on site, and the noise level is noticeably lower than that of a diesel engine. This opens up applications that are difficult to handle with a conventional machine:
- Installation and maintenance work in production halls during ongoing operations
- Logistics centres and warehouses with staff permanently present
- City centres and emission-sensitive areas
- Night and weekend work close to residential areas
- Food and pharmaceutical production with air quality requirements
A practical side effect: fuel logistics on site are no longer needed. No diesel cans, no refuelling, no discussion about storing substances hazardous to water.
Rough-terrain capable, compact and easy to transport
On the ZT18JE-Li, electric drive does not mean indoor-only. It stands on a rough-terrain chassis with four-wheel drive and a permanently active oscillating axle and handles gradients of up to 45 % (24°). Foam-filled tyres rule out punctures on site, and ground clearance is 0.33 m. Drive speed is up to 5.2 km/h.
The compact design pays off when manoeuvring: the turning radius is 2.69 m inside and 5.45 m outside, and the tail swing is 1.70 m. In tight yards or between rows of racking, this gets you to positions for which larger machines would have to be repositioned several times.
With an operating weight of 8,600 kg and transport dimensions of 9.74 m × 2.28 m × 2.57 m (L × W × H), the ZT18JE-Li can be moved with standard transport equipment. The transport height of 2.57 m stays below common clearance restrictions. We deliver across Europe and can organise the complete transport on request.
Safe operation
The machine is operated via proportional joysticks that allow sensitive positioning of the platform. Standard equipment includes a tilt alarm, a load sensing system, auto-levelling, emergency lowering, emergency stop, audible motion alarm, self-closing entry gate, beacon and an on-board diagnostic system. The machine is CE compliant.
On request, you will receive a familiarisation on the machine at handover.
Typical applications of the 20-metre class
Typical applications of the 20-metre class are industrial installation and plant construction, hall and steel construction, electrical and ventilation installations under the ceiling, facade and painting work, tree care and landscaping, and maintenance work on lighting, sprinkler systems and fire detection systems. Wherever work is carried out indoors or the surroundings are sensitive to noise, the ZT18JE-Li plays out its advantage over diesel machines.
Hire the Zoomlion ZT18JE-Li from Luibl
Are you interested in the Zoomlion ZT18JE-Li? We check availability for your rental period and prepare an individual quote for you – including transport, familiarisation and return transport if required. You will find more machines of this type in our telescopic boom lifts category; fully electric alternatives with an articulating boom are available under electric articulating boom lifts.
Advantages of the Zoomlion ZT18JE-Li at a glance
- 20.60 m working height with 13.30 m horizontal outreach
- Zero local emissions and low noise – for indoor use and noise-sensitive environments
- Lithium-ion battery 51.2 V / 315 Ah, no fuel logistics on site
- Articulating jib with 135° range for work points behind obstacles
- Four-wheel drive, oscillating axle and 45 % gradeability for unpaved ground
- Compact: 1.70 m tail swing, 2.69 m inside turning radius
- 360° continuous superstructure rotation, platform rotates ±90°
- Foam-filled tyres – no downtime due to punctures
- Only 2.57 m transport height
Technical data of the Zoomlion ZT18JE-Li
| Field | Value |
|---|---|
| Working height | 20.60 m |
| Platform height | 18.60 m |
| Horizontal outreach | 13.30 m |
| Platform capacity | 300 kg |
| Dimensions (L × W × H) | 9.74 m × 2.28 m × 2.57 m |
| Weight | 8,600 kg |
| Drive | Electric |
| Brand | Zoomlion |
| Model | ZT18JE-Li |
| Item designation | TB-206 |
Frequently asked questions about the Zoomlion ZT18JE-Li
How high does the Zoomlion ZT18JE-Li reach?
The Zoomlion ZT18JE-Li reaches a working height of 20.60 m. The platform height is 18.60 m and the horizontal outreach 13.30 m.
What is the platform capacity of the ZT18JE-Li?
The platform of the ZT18JE-Li carries 300 kg. It measures 1.83 × 0.76 m, providing space for two people and their tools.
Is the Zoomlion ZT18JE-Li suitable for indoor use?
Yes. The ZT18JE-Li runs fully electrically on a lithium-ion battery, produces no emissions on site and is quiet. This makes it suitable for halls and indoor spaces. Check the permissible floor load in advance: the machine weighs 8,600 kg.
Can the ZT18JE-Li be used on rough terrain?
Yes. Four-wheel drive, an oscillating axle and a gradeability of 45 % (24°) make the boom lift suitable for rough terrain. The foam-filled tyres are puncture-proof.
What are the transport dimensions of the Zoomlion ZT18JE-Li?
When stowed, the machine measures 9.74 m × 2.28 m × 2.57 m (L × W × H) and weighs 8,600 kg.
