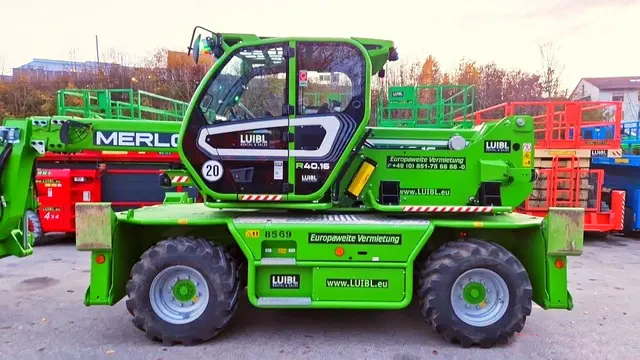

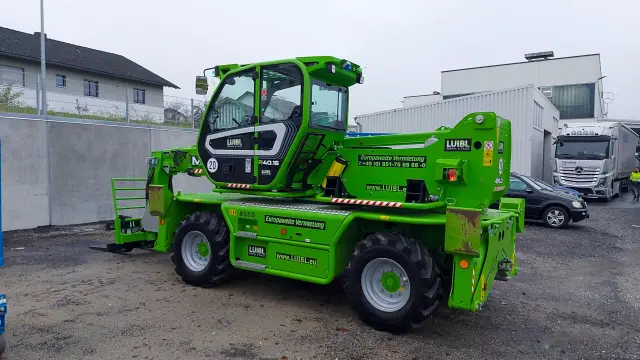

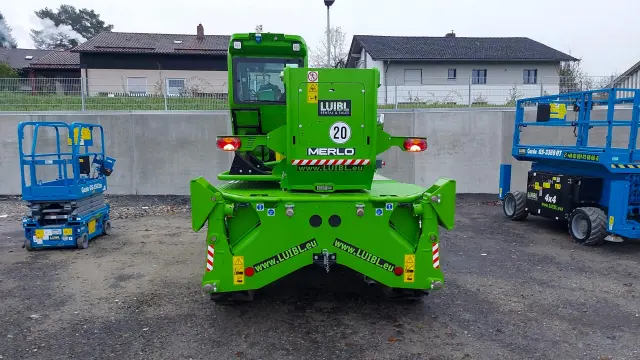

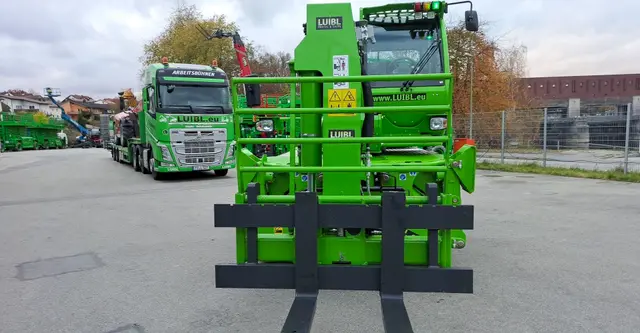

TSR-4016 | Merlo Roto 40.16

Bild 0 einer Mietmaschine vom Typ TSR-4016 | Merlo Roto 40.16Bild 1 einer Mietmaschine vom Typ TSR-4016 | Merlo Roto 40.16Bild 2 einer Mietmaschine vom Typ TSR-4016 | Merlo Roto 40.16Bild 3 einer Mietmaschine vom Typ TSR-4016 | Merlo Roto 40.16Bild 4 einer Mietmaschine vom Typ TSR-4016 | Merlo Roto 40.16
Vorschaubild 0 einer Mietmaschine vom Typ TSR-4016 | Merlo Roto 40.16Vorschaubild 1 einer Mietmaschine vom Typ TSR-4016 | Merlo Roto 40.16Vorschaubild 2 einer Mietmaschine vom Typ TSR-4016 | Merlo Roto 40.16Vorschaubild 3 einer Mietmaschine vom Typ TSR-4016 | Merlo Roto 40.16Vorschaubild 4 einer Mietmaschine vom Typ TSR-4016 | Merlo Roto 40.16

Technical data

Below you will find all product details.

Lifting height
15,80 m
Lateral reach
13,20 m
Lifting capacity
4.000 kg
Dimensions
6,28 m x 2,24 m x 2,98 m
Weight
12.900 kg
Make
Merlo
Model
Merlo Roto 40.16
Drive unit
Diesel
Article designation
TSR-4016

Merlo Roto 40.16 Rotating Telehandler Hire

With an outreach of 13.2 metres, the rotating Merlo Roto 40.16 is suitable for demanding construction sites. With a load capacity of 0.7 tonnes at maximum outreach, it enables efficient work at different heights and distances. The Merlo Roto 40.16 is equipped with a powerful engine and offers reliable versatility. This rotating telehandler also copes well in areas with limited space. The diesel-powered Merlo Roto 40.16 is designed for outdoor use. The Merlo Roto 40.16 telehandler has a lifting height of 15.8 metres and a maximum load capacity of 2.5 tonnes at this height. To avoid damage, the load limit of the Merlo Roto 40.16 should not be exceeded at maximum lifting height. Thanks to its levelling compensation, this telehandler ensures secure footing and maximum performance even on uneven terrain. The rotating telehandler is controlled simply and precisely using 2 joysticks. At Luibl Rental, you can hire the Merlo Roto 40.16 at an attractive rental rate and avoid costly purchase expenses. The telehandler has an overall width of 2.24 metres and a transport length of 6.28 metres. The unladen weight is 12.9 tonnes. The transport height is 2.98 metres. For operator safety, the diesel-powered Merlo Roto 40.16 features a spacious cab that protects against wind and bad weather. Thanks to 360° all-round visibility, the cab offers optimum view. The top speed of this rotating telehandler is 20 km/h. Hire our high-quality rotating Merlo Roto 40.16 telehandler now. If you are interested, feel free to take a closer look at our long-term hire offer.

The Merlo Roto 40.16 - a versatile telehandler for efficient work.

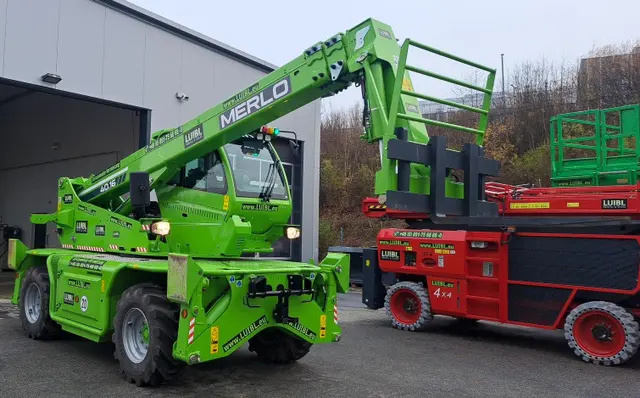

With its 3-section telescopic boom, the Merlo Roto 40.16 offers flexible outreach and allows loads to be placed precisely. The hydraulically controlled "ZM2" quick coupling system enables fast and easy attachment changes directly from the cab. The 4 independently operated stabilisers of the Merlo Roto 40.16 provide lowering and raising functions to ensure a safe and stable working environment. With a rotating superstructure in double ball bearing design, this telehandler enables precise and smooth slewing. The hydraulic steering of the Merlo Roto 40.16 offers 3 steering modes: four-wheel steering, front-wheel steering and crab steering. This allows easy and flexible manoeuvrability in different working environments. With permanent four-wheel drive, a fixed front axle and an oscillating, lockable rear axle, the telehandler offers optimum traction and mobility on different surfaces. The braking system of the Merlo Roto 40.16 features disc brakes on all 4 drive shafts and a parking brake that engages automatically when the engine is switched off. This ensures safe braking performance and a reliable parking function. The frame of the telehandler is made of high-strength steel and provides a robust construction for reliable use in demanding working environments. The hydraulic system of the Merlo Roto 40.16 includes a LOAD SENSING pump with a total flow rate of 103.5 l/min and an operating pressure of 250 bar. The flow-sharing control valve enables precise control of the hydraulic functions. The hydraulic oil used is mineral-based, type HVI 46. The electrical equipment includes a 12-volt battery with 160 Ah and a powerful 120A alternator. Stability control on the Merlo Roto 40.16 is provided by an audiovisual signal and an overload cut-out both on wheels and on stabilisers. This ensures safety during operation. The Merlo Roto 40.16 is fitted with high-quality tyres (400/70-20) that offer optimum traction and stability on different surfaces. With its versatile functions and robust design, this telehandler is ideal for a wide range of applications in construction, agriculture and other working areas where efficiency and reliability are required.

Key technical data

  • Lifting height: 15.8 m
  • Load capacity: 4,000 kg
  • Lateral outreach: 13.2 m
  • Width: 2.24 m
  • Height: 2.98 m

Check availability now and request a quote.
