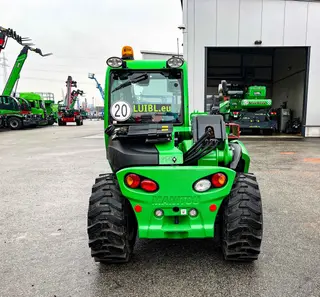

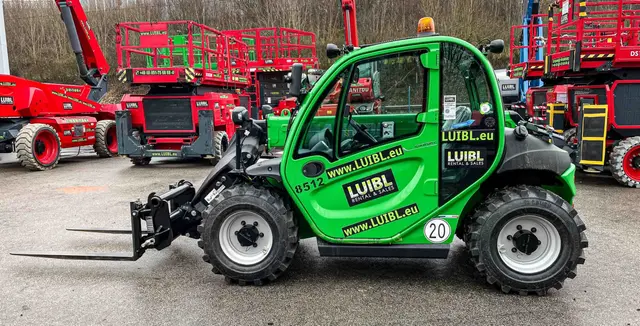

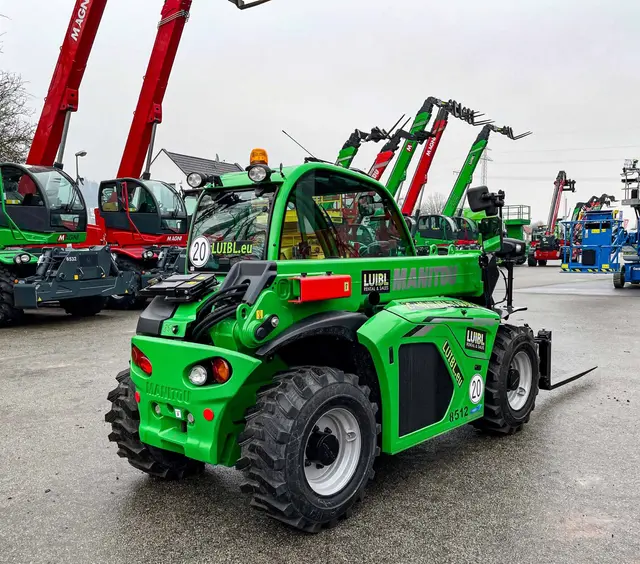

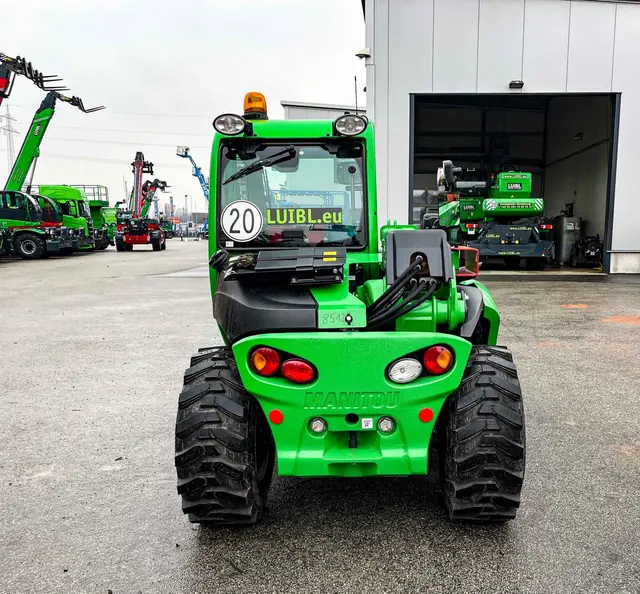

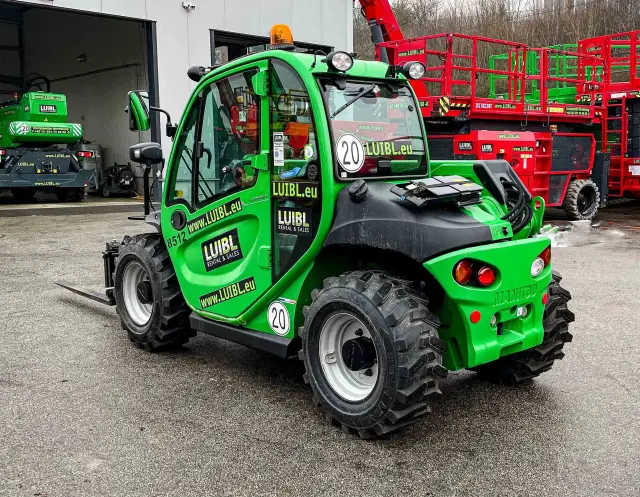

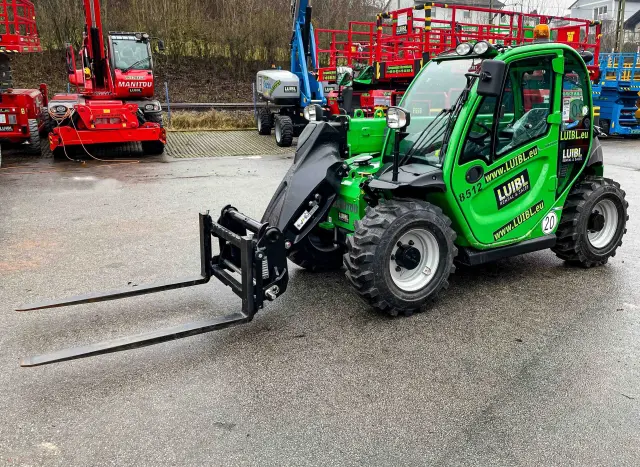

TSS-2004 | Manitou MT 420

Bild 0 einer Mietmaschine vom Typ TSS-2004 | Manitou MT 420Bild 1 einer Mietmaschine vom Typ TSS-2004 | Manitou MT 420Bild 2 einer Mietmaschine vom Typ TSS-2004 | Manitou MT 420Bild 3 einer Mietmaschine vom Typ TSS-2004 | Manitou MT 420Bild 4 einer Mietmaschine vom Typ TSS-2004 | Manitou MT 420
Vorschaubild 0 einer Mietmaschine vom Typ TSS-2004 | Manitou MT 420Vorschaubild 1 einer Mietmaschine vom Typ TSS-2004 | Manitou MT 420Vorschaubild 2 einer Mietmaschine vom Typ TSS-2004 | Manitou MT 420Vorschaubild 3 einer Mietmaschine vom Typ TSS-2004 | Manitou MT 420Vorschaubild 4 einer Mietmaschine vom Typ TSS-2004 | Manitou MT 420

Technical data

Below you will find all product details.

Lifting height
4,35 m
Lateral reach
2,65 m
Lifting capacity
2.000 kg
Dimensions
3,64 m x 2,13 m x 1,97 m
Weight
4.190 kg
Make
Manitou
Model
MT 420
Drive unit
Diesel
Article designation
TSS-2004

TSS-2004 | Manitou MT 420 – telehandler

Telehandler 4.35 m Manitou MT 420

Thanks to its rather compact design, the Manitou 4 m telehandler is also suitable for locations with little space. Nevertheless, the MT 420 telehandler is strong enough to transport loads weighing 2 tonnes and position them precisely in high racking. The Manitou telehandler is excellently suited for outdoor use. The maximum lift height of the Manitou telehandler is 4.35 metres.

Hire the Manitou telehandler with around 4 metres

The 2-tonne telehandler has oil-immersed multi-disc brakes, together with a brake booster on both the front and rear axle, for extra high braking force. In addition, four-wheel steering provides an extremely small turning circle, giving the 2 t Manitou telehandler very high manoeuvrability. Hire a high-quality fixed Manitou telehandler too. Of course, the MT 420 can be fitted with a wide range of attachments. This makes the Manitou telehandler very flexible, so it finds its place at most job sites. A cab for the operator is also on board the telehandler. It protects the operator from wind and weather and also offers 360-degree all-round visibility.

Hire telehandlers with good ground clearance from Luibl Rental

Exceptional ground clearance for use outdoors and on uneven ground is of course also available to you. The MT 420 telehandler also has a four-wheel-drive system. The MT 420 is a compact telehandler in the MT range. It is ideal for construction and renovation work, and its exceptional compactness gives access both through narrow entrances and in confined spaces. Its turning radius and its 3 steering modes (4WS/2WS/crab) ensure excellent manoeuvrability. The MT 420 has a capacity of 2,000 kg at 4.3 m, giving it a powerful load chart. A further advantage is the simultaneous movement of the lifting and telescoping functions, which increases productivity even further.

Interested in a fixed telehandler? Hire now!

Are you interested in the MT-420 fixed telehandler? We will be happy to discuss your planned job and advise you accordingly. Request your individual quote now so that you too can use this telehandler from Manitou on your own site. Our rental team looks forward to hearing from you! We also offer telehandlers from other brands, for example Genie and Magni.

Key technical data

  • Lift height: 4.35 m
  • Capacity: 2,000 kg
  • Horizontal outreach: 2.65 m
  • Width: 2.13 m
  • Height: 1.97 m

Check availability now and request a quote.
