3.8-tonne Electric Forklift | EP EFL382X5 6000 mm

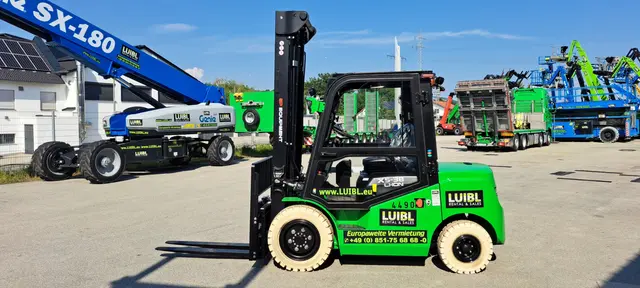

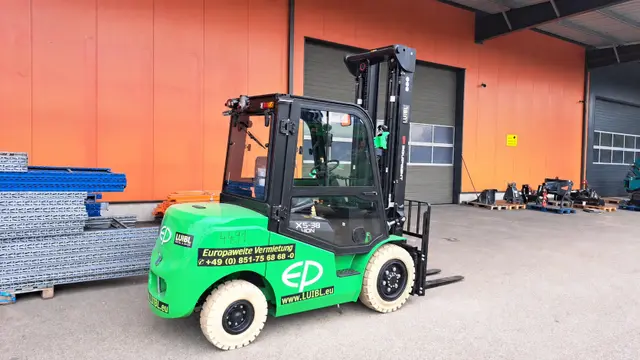

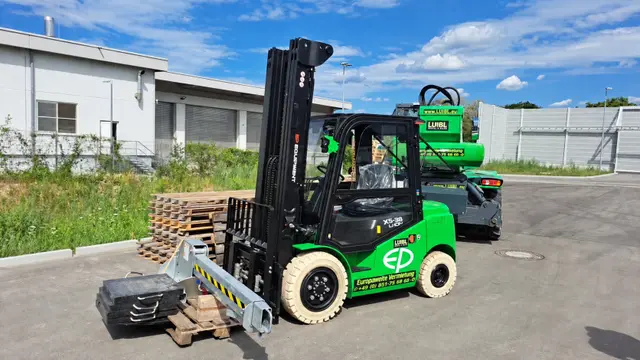

Bild 0 einer Mietmaschine vom Typ 3.8-tonne Electric Forklift | EP EFL382X5 6000 mmBild 1 einer Mietmaschine vom Typ 3.8-tonne Electric Forklift | EP EFL382X5 6000 mmBild 2 einer Mietmaschine vom Typ 3.8-tonne Electric Forklift | EP EFL382X5 6000 mm
Vorschaubild 0 einer Mietmaschine vom Typ 3.8-tonne Electric Forklift | EP EFL382X5 6000 mmVorschaubild 1 einer Mietmaschine vom Typ 3.8-tonne Electric Forklift | EP EFL382X5 6000 mmVorschaubild 2 einer Mietmaschine vom Typ 3.8-tonne Electric Forklift | EP EFL382X5 6000 mm

Technical data

Below you will find all product details.

Lifting height
6,00 m
Lifting capacity
3.800 kg
Dimensions
2,80 m x 1,25 m x 2,87 m
Weight
5.350 kg
Make
EP
Model
EFL382X5 6000 mm
Drive unit
Electric
Article designation
3.8-tonne Electric Forklift

EP EFL382X5 Hire – Electric Forklift with 3.8 t Capacity and 6.0 m Triplex Mast

The EP EFL382X5 is an electric counterbalance forklift with a 3,800 kg lifting capacity and a modular Li-ion battery design. In the version with a triplex full free lift mast and 6.0 m lift height, it is the right choice for racking warehouses with tall storage heights where the 4.5 m and 4.8 m variants are no longer sufficient. At Luibl Rental you can hire the EFL382X5 at short notice, anywhere in Europe, including maintenance and service from a single source.

Technical Data EP EFL382X5 (Triplex 6.0 m)

ParameterValue
Rated capacity3,800 kg
Lift height (triplex free lift mast)6.00 m
Free lift (without/with load backrest)2.180 m / 1.775 m
Mast height lowered2.87 m
Mast height extended with load backrest7.125 m
DriveElectric, AC drive motor 16 kW (S2 60 min), lift motor 30 kW (S3 15%)
BatteryLithium-ion 80 V/280 Ah, optional 80 V/560 Ah (2nd module)
Service weight5,350 kg
Dimensions (L x W x H, overhead guard)3.87 m x 1.25 m x 2.16 m
Travel speed laden/unladen15 / 16 km/h
Max. gradeability laden/unladen16% / 20%
TiresSolid rubber
Ground clearance150 mm (center of wheelbase)
Turning radius2.52 m
Sound pressure level at operator position< 74 dB(A)
CertificationCE

Applications of the EP EFL382X5 with 6.0 m Mast

Racking warehouses with tall storage heights

For warehouses with taller racking, the 6.0 m variant is the right solution within the EFL382X5 series – without having to switch to a narrow-aisle truck or reach truck.

Large distribution centers

In modern logistics centers designed for maximum use of space, the additional lift reserve enables storage on the top racking levels that would be out of reach with smaller masts.

Combined use across several racking heights

Since a single forklift can serve all racking zones, there is no need to keep several specialized machines for different racking heights.

Important note on overall height

With the mast extended and the load backrest fitted, the EFL382X5 in this variant reaches an overall height of 7.125 m. Check the ceiling height of your hall and the door heights for delivery in advance (lowered mast height: 2.87 m).

Modular Li-ion Battery System

The EFL382X5 is supplied as standard with one lithium battery module (80 V/280 Ah). Where greater endurance is required, for example in large distribution centers with continuous multi-shift operation, a second module can be added to double the capacity to 560 Ah. This reduces downtime due to low battery and enables continuous operation without battery changes.

Hire or Buy the EP EFL382X5?

CriterionHire from Luibl RentalPurchase
Capital commitmentnone, predictable hire costshigh investment
Maintenance & serviceincludedown responsibility
Availabilityat short notice, Europe-widedelivery time depending on manufacturer
Flexibility when requirements changeswitch to a different lift height (4.5 m / 4.8 m) possiblefixed to one mast size
Makes sense forproject-based, seasonal requirementspermanent, high-frequency use

Why Hire the EP EFL382X5 from Luibl Rental?

  • 6.0 m lift height: for racking warehouses with tall storage heights
  • Modular Li-ion system: capacity expandable from 280 Ah to 560 Ah when needed
  • Short-notice availability: prompt feedback on price and delivery date after your enquiry
  • Europe-wide use: transport and set-up can also be organized across national borders
  • Maintenance & service included: no hidden follow-up costs

Frequently Asked Questions about the EP EFL382X5 (6.0 m)

What is the lifting capacity of the EP EFL382X5?

The EFL382X5 lifts a maximum of 3,800 kg at a load center distance of 500 mm – regardless of the mast height selected.

What ceiling height do I need for this variant?

With the mast extended and the load backrest fitted, the forklift reaches an overall height of 7.125 m. Clarify the ceiling height of your hall with our team in advance.

Does the forklift fit through a standard hall door?

With the mast lowered, the transport height is 2.87 m – this is relevant for delivery and should be checked in advance against the door heights at the site.

How long does the battery last in shift operation?

With the standard module (280 Ah), shift operation with opportunity charging is possible; for continuous multi-shift operation, the optional second battery module (560 Ah in total) is recommended.

How quickly is the EP EFL382X5 available?

If available in the rental fleet, we deliver at short notice, Europe-wide, on an agreed date.

Enquire about the EP EFL382X5 Now

Check the current availability of the EP EFL382X5 with 6.0 m triplex mast for your project. Our team will get back to you promptly with price and delivery date.

Use and Benefits

The electric drive enables exhaust-free operation on site.

Check availability now and request a quote.
