Diesel scissor lift rental at Luibl Rental

Anyone who has to lift heavy loads to height on unpaved outdoor terrain cannot do without a diesel scissor lift. Electric machines are ruled out on topsoil, gravel or sloping open ground - not because of lift height, but because of drive, ground clearance and load reserves under real load conditions. The Luibl rental fleet includes 27 diesel scissor lifts from renowned manufacturers such as Holland Lift, JLG, Magni, Genie and HAB - with working heights from 10 m to 34 m and load capacities of up to 1,000 kg. All machines are inspected before handover in line with the inspection and test intervals for designated lifting equipment (Decree No. 508/2009 Coll.) and STN EN 280 and delivered in technically flawless condition.

Not every diesel scissor lift is suitable for every job. The decisive selection parameters are working height, platform payload, platform length when extended and the off-road capability of the chassis. Luibl divides its diesel portfolio into three performance classes so that you can estimate which type of machine your project requires before you enquire.

Compact class: 10 m to 14 m working height for confined outdoor areas

Compact diesel scissor lifts are the right choice when access routes are narrow, the ground is uneven and working heights in the double-digit range are still required. The models in this class have a narrow width that allows passage through standard site gates, and an extendable deck that increases the usable platform area without lifting. Typical applications are facade work on existing buildings with limited forecourts, installation work on factory sites with uneven gravel beds, or assembly work on sites where no crane is available.

Machine class at a glance:

• Working height: 10 m to 14 m

• Drive: diesel/4WD

• Gradeability: up to 45 %

• Platform design: extendable deck for additional material storage

Large scissor lifts with extended deck: 15 m to 22 m

From approx. 15 m working height, the focus shifts to platform capacity. In hall and facade construction these machines are used when several people work on the platform at the same time and materials such as sandwich panels, ventilation ducts or girder profiles are to be processed directly from the deck. The platforms in this class can be extended to lengths of over 6 m, and the load capacity is up to 750 kg - enough for two people with heavy tools and semi-finished materials.

A proven machine in this segment is the JLG Liftlux 203-24: 22.5 m working height, 750 kg load capacity, 10 m2 platform area, 11,400 kg own weight. The same applies to the HAB S225-24 D4WDS with 22.5 m working height and four-wheel drive. Both models are fitted with white, non-marking solid rubber tyres - a key criterion for use in freshly coated factory halls, where conventional off-road tyres would leave tracks.

With 28 m working height, the JLG Liftlux 260-25 covers the upper limit of this class. Four-wheel steering combined with four-wheel drive ensures precise travel even on uneven terrain; proportional control of all drive and lift functions allows millimetre-precise positioning under load. When stowed, the machine travels at 3.6 km/h; when raised, travel speed is limited to 0.3 km/h.

Machine class at a glance:

• Working height: 15 m to 28 m

• Load capacity: up to 750 kg

• Platform design: large extendable deck, non-marking solid rubber tyres available

• Typical models: HAB S225-24 D4WDS, JLG Liftlux 203-24, JLG Liftlux 260-25, HAB S280-25D 4WDS

Tallest scissor lifts: 23 m to 34 m for industrial plant construction

The upper performance range of the Luibl rental fleet covers projects where no other type of aerial work platform is sufficient: facade installation on multi-storey industrial and logistics buildings, steel construction in plant engineering, roof work on halls with ridge heights over 20 m. Luibl keeps several 34 m diesel scissor lifts in its own fleet.

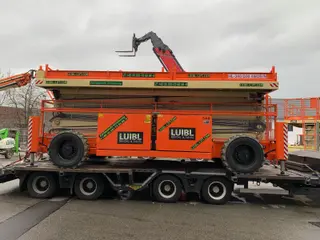

The flagship of this class is the Holland Lift HL 340D30 4WDS: 34 m working height, 1,000 kg load capacity, 3 m platform width, own weight approx. 32 tonnes. The platform can be extended up to 9.66 m - a value rarely achieved by comparable competitor products. All drive and lift functions are controlled proportionally. An electronic tilt sensor automatically switches off the lift function as soon as the permissible ground inclination is exceeded. A differential lock and a switchable high-speed gear complete the chassis.

Also in stock: the Magni DS3225RT with 32 m working height and the Holland Lift Megastar G320, the predecessor of the HL 340D30 with identical working height.

Important planning note: Machines in the 34 m class have a width of 3 m and a transport weight of almost 32 tonnes. This requires an abnormal load transport. Allow sufficient lead time for the special road-use permit and transport organisation. Luibl coordinates the abnormal load transport with its own low-loader fleet.

Machine class at a glance:

• Working height: 23 m to 34 m

• Load capacity: up to 1,000 kg

• Platform extension (max.): up to 9.66 m

• Transport logistics: abnormal load transport from the 34 m class, lead time required

• Typical models: Holland Lift HL 340D30 4WDS, Magni DS3225RT, Holland Lift Megastar G320

On paper, "rough-terrain" sounds like a simple feature. In operation, the combination of several chassis characteristics determines whether a diesel scissor lift can actually be set up safely on a real site.

Four-wheel drive and four-wheel steering are the basic requirements. Four-wheel drive distributes drive power evenly to all axles - essential on soft ground where a single axle would spin. Four-wheel steering allows obstacles to be bypassed in the tightest spaces, which is often underestimated with long-platform machines outdoors.

Oscillating axle: On uneven surfaces, the oscillating axle keeps all four wheels in permanent contact with the ground - even when the surface varies between the axles. Without this feature, a wheel would lift on uneven ground, leading to lateral instability that the electronic tilt sensor detects but does not prevent. The oscillating axle is fitted as standard on most machines from the 20 m class upwards.

Differential lock: When a drive wheel loses traction on slippery or soft ground, the differential lock prevents one-sided spinning and redirects torque to the wheel with better grip. In facade construction on topsoil - especially after rain - this feature is the decisive difference between a working machine and a stuck one.

Solid rubber tyres vs. off-road tyres: Rough-terrain models with foam-filled or solid rubber tyres have a decisive advantage in factory halls and on freshly coated industrial floors: they leave no tracks. For projects where the machine switches between outdoor and indoor use, this is an important selection criterion. The HAB S225-24 D4WDS is available in the Luibl fleet with such non-marking solid rubber tyres.

All diesel scissor lifts from the Luibl rental fleet are technically inspected before delivery. The inspection obligation arises from Government Regulation No. 392/2006 Coll. (work equipment) in conjunction with occupational safety rules and STN EN 280 - the European standard for mobile elevating work platforms. Aerial work platforms are designated lifting equipment; inspections and tests of technical equipment are governed by Decree No. 508/2009 Coll. The standard defines the minimum design requirements (stability against tipping, load charts, wind load limits) and sets out the documentation obligations for the operator.

For long-term rentals, Luibl offers package deals that include an inspection and annual maintenance - particularly useful for projects lasting several months, as the inspection obligation applies regardless of whether the machine is purchased or rented.

Transport is carried out with our own low-loader fleet. Standard machines up to 28 m working height generally do not require a special permit. The 34 m class (width 3 m, weight approx. 32 t) requires an abnormal load transport - Luibl coordinates the permit and vehicle provision. Delivery is available throughout Slovakia and to the other Luibl markets: Germany, Austria, Switzerland, Poland, Czechia, Italy, Hungary, Luxembourg.

In the event of technical faults during the rental period, you can request a service technician via the form on luibl.eu. The technician is sent directly to the site to minimise downtime.

Checklist for site managers before ordering a machine:

• Check the ground bearing capacity at the set-up area (guide value: point load depending on machine class up to 30 t on a footprint of approx. 3 m x 4 m)

• Clarify access width and clearance height for the low-loader and machine

• Measure the ground inclination (max. permissible according to manufacturer specification; for 34 m models typically max. 3 degrees in operation)

• Request the report of the last inspection for submission to the authorities

• For 34 m models: allow sufficient lead time for the abnormal load transport permit

Send us a non-binding enquiry for your project now - with details of the required working height, location and duration of use, Luibl will prepare a tailored quote including availability and transport planning:

Send an enquiry now -> luibl.eu/kontakt/
